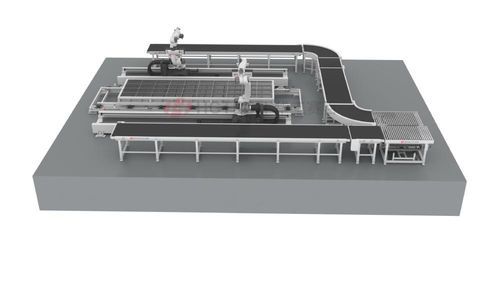

Robotic sorting cell

pick-and-placehandlingfor welding

Product overview
The Cantilever Robot Sorting Workstation (CRW Series) combines 2D+3D multi-modal vision with deep-learning AI to enable automatic identification, classification and transfer of very large sets of irregular workpieces. The modular workstation is designed for rapid integration with laser cutting, welding and MES/digital twin systems to provide fully unmanned, flexible sorting solutions for metalworking, new energy and chemical production lines.

Key features

• Multi-modal vision: integrated 2D + 3D vision system with deep-learning AI for robust object recognition and classification.
• High-volume handling: automatic identification, classification and transfer of tens of thousands of irregular SKUs.
• Long X-axis stroke: scalable design supporting up to 100 m travel.
• Optional heavy-load capability: configurations available for up to 2-ton payloads.
• High recognition performance: > 99% recognition rate for thin plates, profiles and chemical containers.
• High positioning precision: positioning accuracy ≤ 1 mm.
• Flexible gripping range: payload handling from 0–200 kg (standard configurations).
• Multi-robot collaboration: coordinated multi-station and multi-robot operation for flexible sorting of 10,000+ complex small and medium parts.
• Advanced functions: weak-feature recognition, multi-robot dynamic obstacle avoidance, grasp planning and flexible demagnetization.
• Cycle time references: product description cites an average cycle time of 20 s/pc; technical parameters list cycle time as 25–35 s/pc.

Applications

• Sorting and handling of cut metal parts, thin plates, profiles and chemical containers.
• Integration into production lines combining laser cutting, welding and downstream automation for fully unmanned sorting operations.
• Suitable for metalworking, new energy manufacturing and chemical production lines requiring high-mix, low-to-medium-volume flexible sorting.

Technical specifications

• Equipment type: Cantilever Robot
• Working stroke: X: 1–100 m, Y: 1–5 m
• Gripping / Max. payload: 0–200 kg (max. payload: 200 kg)
• Cycle time: 25–35 s/pc (technical table); product description additionally cites an average cycle time of 20 s/pc
• Positioning accuracy: ≤ 1 mm
• Recognition accuracy: ≥ 99%
