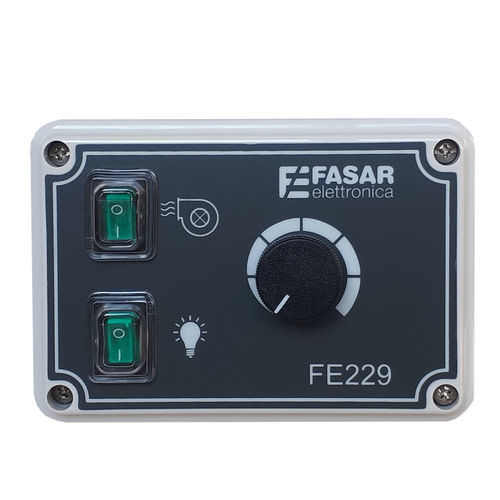

Single-phase speed controller FE229

inductionanalogfor fans

The FE229 regulator allows speed control of an induction single-phase motor (typically used for air intake system) using the knob: speed is linearly adjustable from a minimum value up to a maximum value when the motor is switched on (calibration of values is possible With internal trimmers). The motor switch also supplies mains voltage (230Vac) for control of an eventual external solenoid valve (ON-OFF chimney or gas solenoid valve). The regulator can also control a lighting system by a dedicated switch. TECHNICAL CHARACTERISTICS • Internal fuse: 10AT. • Phase control With TRIAC. • Single-phase induction motor. • ON/OFF motor switch: Two-way bright green switch. • Maximum Ioad LIGHTS: 5A. • ON/OFF light switch: Two-way bright green switch. • IP protection: IP55. • Size: 128x88x73 mm. • Weight: 0.31 kg.
