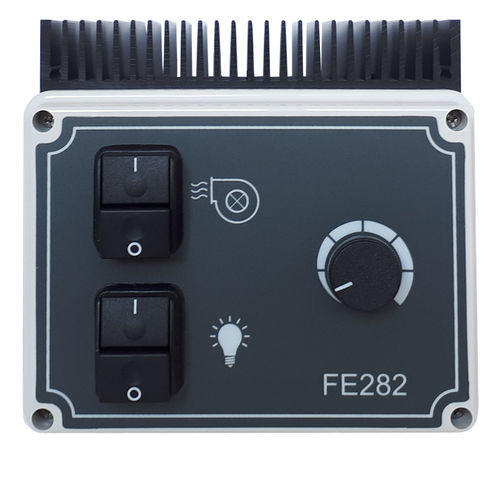

Analog speed controller FE282

single-phaseinductionfor fans

The FE282 regulator allows speed control of 1-2 induction single-phase motors (typically used for air intake system) using the knob: speed is linearly adjustable from a minimum value up to a maximum value when the motor is switched on (calibration of values is possi ble with internal trimmers). The motor switch also supplies mains voltage (230Vac) for control of an eventual external solenoid valve (ON-OFF chimney or gas solenoid valve). The regulator can also control a lighting system by a dedicated switch. TECHNICAL CHARACTERISTICS • Internal fuse: 16AF. • Phase control with TRIAC. • Single-phase induction motor. • ON/OFF motor switch. • Maximum load LIGHTS: 5A. • ON/OFF light switch. • Features for gas solenoid valve: 230Vac -50Hz MAX. 1A. • IP protection: IP5O • Size: 158x140x95 mm. • Weight: 0.82 kg.
