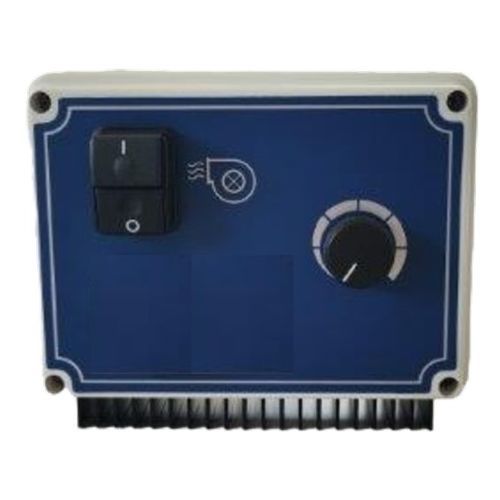

Single-phase speed controller FE1032/Iinductionanalogfor fans
Add to favorites
Compare this product
Characteristics
- AC/DC
- single-phase
- Motor type
- induction
- Other characteristics
- analog
- Applications
- for fans
- Input voltage
230 V
- Current
8 A
Description
FE1032/X - Analog speed controller for induction single-phase motor
The FE1032/I regulator allows speed control of 1-2 induction single-phase motors (typically used for air intake system) using the knob: speed is linearly adjustable from a minimum value up to a maximum value when the motor is switched on (calibration of values is possible with internal trimmers). The motor switch also supplies mains voltage (230Vac) for control of an optional extemal load.
TECHNICAL CHARACTERISTICS
• Internal fuse: 16AF.
• Phase control with TRIAC.
• Single-phase induction motor.
• ON/OFF rmtor switch.
• Features for optional external load: 230Vac—50Hz MAX.1A.
• IP protection: IP5O
• Size: 158x130x95 mm.
• Weight: 0.78 kg.
