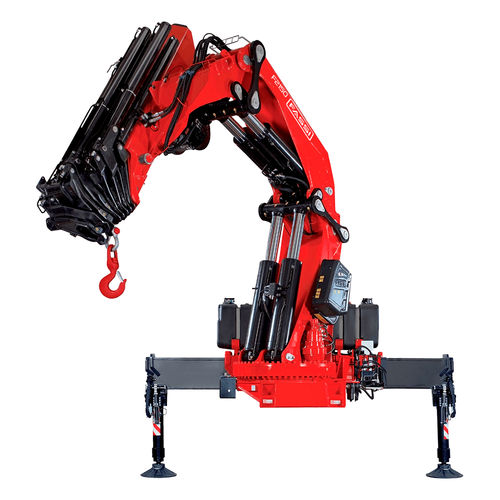

Crane for heavy-duty applications F2150RA xhe-dynamic series
truck-mountedboomtelescopic

crane for heavy-duty applications
crane for heavy-duty applications
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
boom, telescopic
Applications
loading, for heavy-duty applications
Engine type
with combustion engine
Number of axles
3-axle, 4-axle
Other characteristics
hydraulic, radio-controlled
Lift capacity

160,000 kg
(352,739.6 lb)

Horizontal reach

31.3 m
(102'08" )

Width (base)

2,545 mm, 2,550 mm
(100 in, 100 in)

Total weight

Min.: 12,700 kg
(27,999 lb)

Max.: 16,200 kg
(35,715 lb)

Description

IMC integral machine control FX900 control unit D900 double digital distributor bank ADC automatic dynamic control FX901 - touch screen display flow sharing dynamic version (.2): with linkage XP device Prolink system with double linkage continuous rotation on a slew ring with double motoreducer double hydraulics circuit Fassi has revolutionised the traditional idea of heavy-weight knuckle boom crane, to be installed on 3 or 4-axle trucks. These cranes stand out for their ability to combine exceptional lifting performance with a machine body that reduces structural dimensions to a minimum and aims at limiting tare weight. This is possible thanks to the use of special materials, first among which are the extremely high elasticity steels which, while they ensure formidable levels of resistance, also make it possible to optimise weight. This is why Fassi is able to offer a crane “without compromise”. Naturally, particular care is given to reliability, although this has to be reconciled with dynamics, which are an integral part of the very concept of hydraulic cranes.
