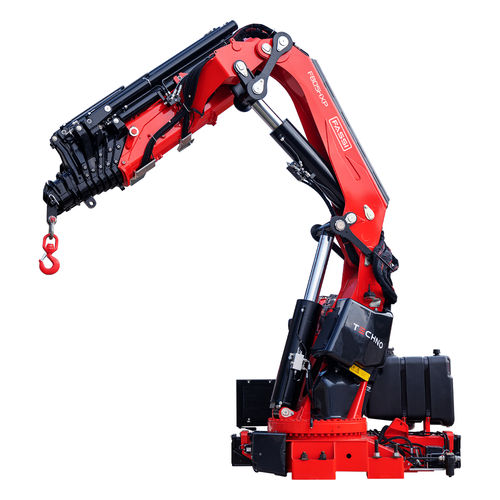

Truck-mounted crane F805R-HXP Techno

telescopicall-terrainfor heavy-duty applications

The F805R-HXP TECHNO joins the TECHNO range, representing a combination of compactness, innovation and power. With a maximum moment of 71.9 tm and a 9-telescopic-boom structure, this crane achieves a hydraulic outreach of up to 32.25 metres with jib, while maintaining precision and reliability under all operating conditions. Fassi's most advanced electronic solutions lie at the heart of this machine: IMC, FX990, D900 digital distributor, FX991 touchscreen, ADC for dynamic control and the V7RRC radio controller, for intuitive, safe and constant control. The X-Design system and ultra high-strength steels guarantee lightness and resistance, while the package of technological solutions also features double linkage, ProLink, XP device and continuous slew-ring rotation, offering maximum operational flexibility. A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle. A security system that detects if the lateral extension supports of the outriggers are fully retracted, both for manually and hydraulically extendable outrigger supports. Linked to the height check system of the crane, at rest in the transport position, it is completed by a visualizer with visual and acoustic alarm, to install on the dashboard of the vehicle cab. A system that proportionally distributes the oil from the pump to all manoeuvres simultaneously.
