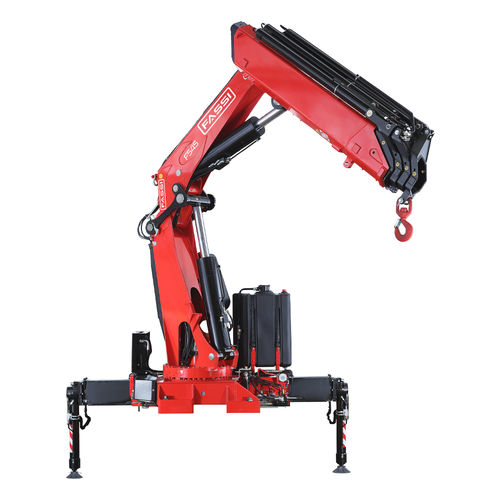

Truck-mounted crane F545RA xe-dynamic

boomall-terrainfor construction

The F545RA xe-dynamic represents an ideal combination of power, technology and versatility. With a maximum moment of 53 tm and an outreach of up to 28.55 metres with jib, this crane is designed to handle the most demanding applications, ensuring precision, smooth motion and reliability at all times. The electronics and hydraulics include the FX500 control unit, the D850 digital distributor, the ADC system for dynamic control, and flow sharing, which ensures coordinated and continuous movement even under the most demanding conditions. The RCH/RCS remote controller provides the operator with safe, intuitive and constant control. From a structural point of view, the ProLink double linkage and XP device increase performance in situations of maximum stress, while continuous slew-ring rotation provides maximum operational flexibility. A sturdy and high-tech crane designed for those seeking uncompromising efficiency. Strengths ADC – Automatic Dynamic Control A control system developed by Fassi automatically controlling the dynamics of all the crane functions maximizing the speed of movement depending on the handled load, allowing only controlled movements and minimizing the structural stress on both the crane and the frame/sub frame of the vehicle. D850 – Digital Multifunction Distributor Bank Multifunction hydraulic distributor bank with digital anti-saturation system that manages the oil delivered by the pump proportionally among all the functions that require it, thereby ensuring a perfect multifunction and proportional operation.
