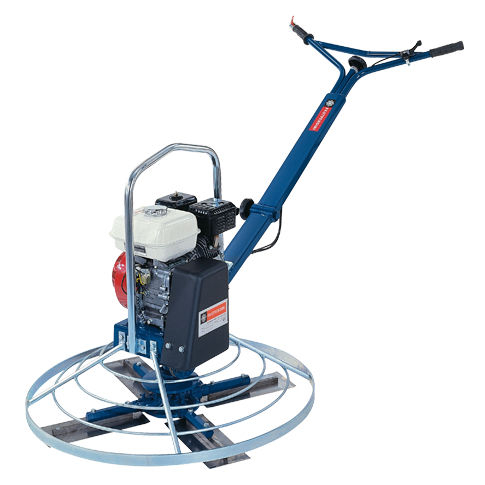

Walk-behind power trowel LEVEL 100

Description

• Concrete power trowel for finishing and levelling
• Honda gasoline engine GX160
• Lifting hook for engine protection
• Folding, height-adjustable handle
• Mechanical blade inclination adjustment
• Centrifugal clutch

Specifications (table)
Model: LEVEL 100, LEVEL 100/D
Rotor diameter mm: 900
Number of blades: 4
Finishing blades mm: 320 x 130
Roughing blades mm: 322 x 230
Trowel plate diameter mm: 940
Blade rotation rpm: 131
Engines: Honda gasoline GX160; Kohler Lombardini gasoline CH270; Kohler Lombardini diesel 15LD225
Engine power kW (Hp): 3.5 (4.8); 4.0 (5.5); 5.5 (7.5)
Starting: Recoil
Fuel consumption l/h: 1.18; 1.4
Tank capacity L: 3; 3.6
Dimensions L x W x H mm: 2005 x 915 x 900
Weight kg: 70; 80

Features / technical specifications

• Model: LEVEL 100, LEVEL 100/D
• Rotor diameter: 900 mm
• Number of blades: 4
• Finishing blades: 320 x 130 mm
• Roughing blades: 322 x 230 mm
• Trowel plate diameter: 940 mm
• Blade rotation: 131 rpm
• Available engines: Honda gasoline GX160; Kohler Lombardini gasoline CH270; Kohler Lombardini diesel 15LD225
• Engine power: 3.5 kW (4.8 Hp); 4.0 kW (5.5 Hp); 5.5 kW (7.5 Hp)
• Starting: Recoil
• Fuel consumption: 1.18 l/h; 1.4 l/h
• Tank capacity: 3 L; 3.6 L
• Dimensions (L x W x H): 2005 x 915 x 900 mm
• Weight: 70 kg; 80 kg
