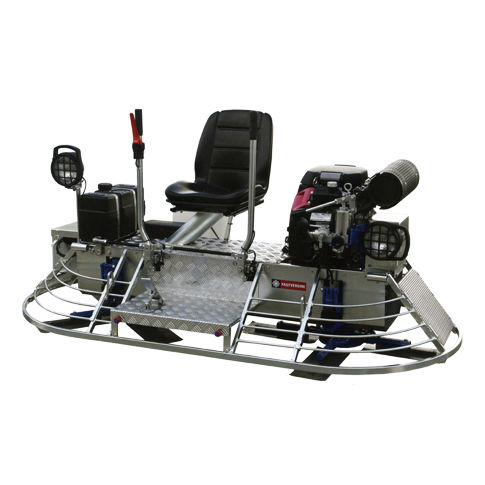

Ride-on power trowel DUPLEX 1000/H

Description
Hydraulic joystick controls with patented hydraulic adjustable blade inclination allowing simultaneous inclination of both rotors. Two work lights. Protective frame openable from both sides. All components are galvanized. 10 L water tank with push-button electric pump and continuous-flow sprayers. Special galvanized steel battery case. Anti-corrosion 11 L fuel tank made of special material. Stainless-steel oil tank. Oversized gear reducers enclosed in a steel box. Working hours display and tachometer (RPM).

Features / Technical specifications

• Model: DUPLEX 1000/H
• Code: PFDUPLH1
• Rotor diameter (mm): 1000
• Number of blades: 8
• Finishing blades (mm): 357 x 152
• Roughing blades (mm): 360 x 250
• Disc diameter (mm): 1000
• Blade rotation (rpm): 134
• Engine: Honda GX690 petrol
• Engine power (kW (Hp)): 19.8 (27)
• Start: Electric
• Fuel consumption (l/h): 6.3
• Fuel tank capacity (L): 11
• Water tank: 10 L with electric pump and continuous-flow sprayers
• Dimensions (L x W x H mm): 2210 x 1040 x 980
• Weight (Kg): 270
