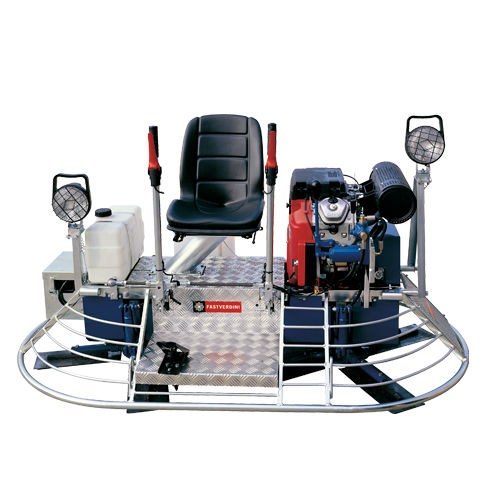

Ride-on power trowel DUPLEX 950/CM

Description

• Mechanical controls and patented hydraulic adjustable blade inclination allowing simultaneous inclination of both rotors.
• Two work lights for improved visibility during operation.
• Protective frame openable from both sides for easy access and maintenance.
• All parts are galvanized for increased corrosion resistance.
• 10 lt water tank with button-operated pump and continuous-flow sprayers.
• Special galvanized steel battery case.
• Anti-corrosion 11 lt fuel tank.
• Over-sized gears housed in a steel box for heavy-duty operation.
• Working hours counter and RPM display for service tracking.

Specifications
Model: DUPLEX 950/CM
Rotor diameter mm: 950
Number of blades: 8
Finishing blades mm: 357 x 152
Roughing blades mm: 360 x 250
Disc diameter mm: –
Blade rotation rpm: 134
Engine: Honda petrol GX630
Engine power kW (Hp): 16.2 (22)
Start: Electric
Fuel consumption l/h: 6
Fuel tank capacity Lt: 11
Dimensions L x W x H mm: 1830 x 1040 x 980
Weight Kg: 270

Features / technical specifications

• Model: DUPLEX 950/CM
• Rotor diameter: 950 mm
• Number of blades: 8
• Finishing blades: 357 x 152 mm
• Roughing blades: 360 x 250 mm
• Blade rotation: 134 rpm
• Engine: Honda petrol GX630
• Engine power: 16.2 kW (22 Hp)
• Start: Electric
• Fuel consumption: 6 l/h
• Fuel tank capacity: 11 Lt
• Water tank: 10 Lt with button pump and continuous-flow sprayers
• Dimensions (L x W x H): 1830 x 1040 x 980 mm
• Weight: 270 Kg
• Components protected by galvanization
• Protective ring openable from both sides
• Over-sized reducers in steel housing
• Working hours counter and tachometer
