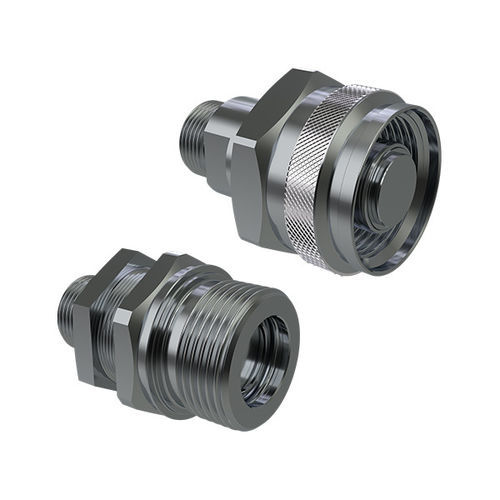

Hydraulic quick coupler FLV series

Product overview
This series combines the advantages of flat-face screw coupling technology with an extremely compact and robust design. Ideal for applications requiring a flat-face connection where residual pressures are negligible. MATE 1000 (ZnNi) plating ensures enhanced corrosion resistance. Female coupler bodies allow panel installation.

Key characteristics

• Series: FLV
• Type: Screw-on flat-face coupling (flat valve type)
• Material: Steel
• Surface treatment: MATE 1000 (ZnNi - Zinc-Nickel)
• Seals: NBR
• Working temperatures: -25 °C to 100 °C
• Typical applications: Construction equipment and similar mobile hydraulic applications requiring compact flat-face couplings

Items - Female (table header and sample rows)
Columns: Size (mm) | Part Number | Thread | Flow Rate (l/min at 0.2 MPa) | Seals | HEX1 (mm) | HEX2 (mm) | HEX3 (mm) | D1 (mm) | D3 (mm) | L1 (mm) | Connection Thread (D2)
10 | FLV06-2/1415 F | M14x1.5 MALE 8L | 32 | NBR | 36 | - | 36 | 42 | - | 58 | M32x3
10 | FLV06-2/1615 F | M16x1.5 MALE 10L | 32 | NBR | 36 | 25 | 36 | 42 | 42 | 59.2 | M32x3
10 | FLV06-2/1815 F | M18x1.5 MALE 12L | 32 | NBR | 36 | 25 | 36 | 42 | 42 | 59.2 | M32x3
10 | FLV06-2/2215 F | M22x1.5 MALE 15L | 32 | NBR | 36 | 25 | 36 | 42 | 42 | 60.2 | M32x3
10 | FLV06-3/1815 F | M18x1.5 MALE 10S (short) | 32 | NBR | 36 | 25 | 36 | 42 | 42 | 60.2 | M32x3
12.5 | FLV08-2/2215 F | M22x1.5 MALE 15L | 32 | NBR | 41 | 25 | 41 | 47 | - | 70 | M36x3
19 | FLV12-2/2215 F | M22x1.5 MALE 15L | 75 | NBR | 55 | - | 50 | 61 | - | 81 | M48x3
25 | FLV16-2/2615 F | M26x1.5 MALE 18L | 165 | NBR | 60 | 36 | 50 | 70 | - | 96 | M54x4
31.5 | FLV20-2/4520 F | M45x2 MALE 35L | 430 | NBR | 85 | 55 | 100 | 89.8 | 100 | 129 | M79x4

Items - Male (table header and sample rows)
Columns: Size (mm) | Part Number | Thread | Flow Rate (l/min at 0.2 MPa) | Seals | HEX1 (mm) | HEX3 (mm) | D1 (mm) | L1 (mm) | Connection Thread (D2)
10 | FLV06-2/1415 M | M14x1.5 MALE 8L | 32 | NBR | 41 | 22 | 46 | 63 | M32x3
10 | FLV06-2/1615 M | M16x1.5 MALE 10L | 32 | NBR | 41 | 22 | 46 | 64 | M32x3
10 | FLV06-3/1815 M | M18x1.5 MALE 10S | 32 | NBR | 41 | 22 | 46 | 65 | M32x3
12.5 | FLV08-2/2215 M | M22x1.5 MALE 15L | 75 | NBR | 46 | 24 | 52 | 73.4 | M36x3
19 | FLV12-2/2215 M | M22x1.5 MALE 15L | 120 | NBR | 60 | 32 | 68 | 84 | M48x3
25 | FLV16-2/2615 M | M26x1.5 MALE 18L | 165 | NBR | 55 | 41 | 65 | 96 | M54x4
31.5 | FLV20-2/4520 M | M45x2 MALE 35L | 430 | NBR | 85 | 55 | 89.8 | 136 | M79x4

Accessories & spares
Dust protections - Plastic (Female)

• 10 mm (10 mm / 3/8") – TMFLV06 – Red
• 12.5 mm (1/2") – TMFLV08 – Red
• 19 mm (3/4") – TMFLV12 – Red

Dust protections - Plastic (Male)

• 10 mm – TFFLV06 – Red
• 12.5 mm – TFFLV08 – Red
• 19 mm – TFFLV12 – Red

Dust protections - Aluminium (Female)

• 19 mm – TMFLV12 S – Metal
• 25 mm – TMFLV16 S – Metal
• 31.5 mm – TMFLV20 S – Metal

Dust protections - Aluminium (Male)

• 19 mm – TFFLV12 S – Metal
• 25 mm – TFFLV16 S – Metal
• 31.5 mm – TFFLV20 S – Metal

Seal kits

• 10 mm – SK FLV06 F
• 12.5 mm – SK FLV08 F
• 19 mm – SK FLV12 F
• 25 mm – SK FLV16 F
• 31.5 mm – SK FLV20 F

Performance summary / Burst pressure & flow
Dash sizes covered: 06, 08, 12, 16, 20.
Working pressure (typical): 42 MPa for standard sizes shown.
Representative flow rates (at 0.2 MPa): 06 → 32 l/min; 08 → 75 l/min; 12 → 120 l/min; 16 → 165 l/min; 20 → 430 l/min.
Burst pressure examples by dash size: 06: Male 130 MPa, Female 140 MPa, Male+Female 250 MPa; 08: Male 130 MPa, Female 130 MPa, Male+Female 200 MPa; 12: refer to technical table for values.

Specifications / Notes

• Series Interchange: MARKET
• Valve type: Flat
• Connection: Screw to connect
• Disconnection: Unscrew to disconnect
• Connection under pressure: Not allowed

Technical specifications

• Material: Steel
• Seals: NBR
• Surface treatment: MATE 1000 (ZnNi) Zinc-Nickel plating
• Working temperature range: -25 °C to 100 °C
• Working pressure (typical): 42 MPa (see detailed table for each dash size)
• Flow rates (examples at 0.2 MPa): 32 / 75 / 120 / 165 / 430 l/min depending on size
• Recommended application: flat-face couplings where compact design and corrosion resistance are required
