2-tube coupling assembly FFC series

Product overview

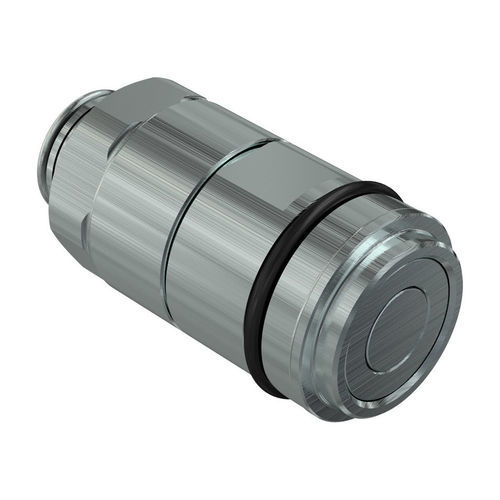

Self-aligning flat face couplings for multiconnections. Misalignments up to ± 0.5 mm and ± 1° (angular) are automatically compensated during the connection. Stainless steel components (AISI 316) with Viton seals. Faster proprietary profile.

Items - Female

• Size: 6.3 mm (1/4") — Part number: FFC14 F 2V — D1: 19 mm — L1: 44.8 mm — Flow rate: 8 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 60 g
• Size: 10 mm (3/8") — Part number: FFC38 F 2V — D1: 23.9 mm — L1: 49.3 mm — Flow rate: 23 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 103 g
• Size: 12.5 mm (1/2") — Part number: FFC12 F 2V — D1: 31.3 mm — L1: 70.8 mm — Flow rate: 35 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 60.7 g

Items - Male

• Size: 6.3 mm (1/4") — Part number: FFC14 M 2V — D1: 19.6 mm — D3: 12.1 mm — L1: 36 mm — Flow rate: 8 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 38 g
• Size: 10 mm (3/8") — Part number: FFC38 M 2V — D1: 24.5 mm — D3: 16.1 mm — L1: 40.5 mm — Flow rate: 23 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 65.8 g
• Size: 12.5 mm (1/2") — Part number: FFC12 M 2V — D1: 32.5 mm — D3: 19.7 mm — L1: 56 mm — Flow rate: 35 l/min at 0.2 MPa — Temperature: -20 °C to 200 °C — Seals: FKM — Weight: 60.7 g

Accessories & Spares

• KIT FFC SR — For couplings — Material: Steel

Pressure drop / diagrams
Flow diagram available for the FFC series (flow characteristics / pressure drop diagram associated to the product series).

Warnings
This product can expose you to chemicals such as Lead or Nickel which are known to some jurisdictions to cause cancer and birth defects or other reproductive harm.

Technical characteristics / specifications

• Material: Stainless Steel (AISI 316)
• Seals: FKM (Viton)
• Working temperatures: -20 °C to 200 °C
• Series Interchange: FASTER
• Valve Type: Flat
• Connection: Special
• Disconnection: Special
• Connection Under Pressure: Not Allowed
• Burst pressure and performance (summary by dash size):
  Dash 02 — Size: 3.2 mm — Working pressure: 25 MPa — Flow rate: 2.5 l/min at 0.2 MPa — Spillage: 0.002 ml — Force to connect: 80 N — Male burst pressure: 100 MPa — Female burst pressure: 100 MPa — Male+Female: 130 MPa
  Dash 04 — Size: 6.3 mm — Working pressure: 32 MPa — Flow rate: 8 l/min at 0.2 MPa — Spillage: 0.002 ml — Force to connect: 80 N — Male burst pressure: 150 MPa — Female burst pressure: 90 MPa — Male+Female: 130 MPa
  Dash 06 — Size: 10 mm — Working pressure: 25 MPa — Flow rate: 23 l/min at 0.2 MPa — Spillage: 0.006 ml — Force to connect: 110 N — Male burst pressure: 90 MPa — Female burst pressure: 100 MPa — Male+Female: 100 MPa
  Dash 08 — Size: 12.5 mm — Working pressure: 45 MPa — Flow rate: 35 l/min at 0.2 MPa — Spillage: 0.006 ml — Force to connect: 185 N — Male burst pressure: 140 MPa — Female burst pressure: 80 MPa — Male+Female: 180 MPa
