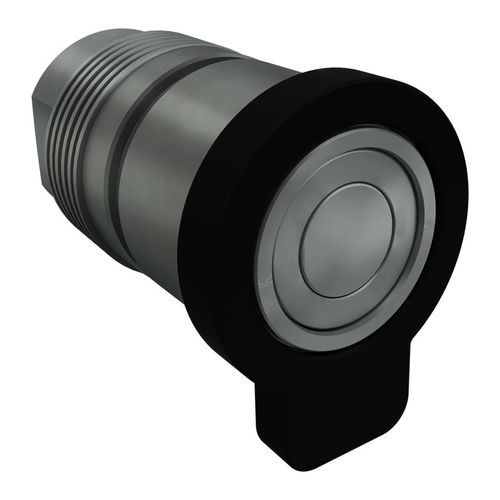

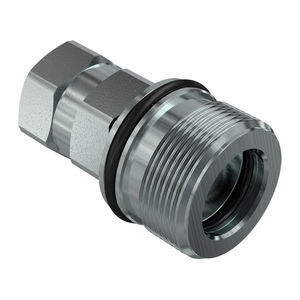

Tractor quick coupler FFHB series

for bulldozersfor loadersfor telehandlers

Product description
Cartridges installable into hydraulic manifolds to ensure perfectly flat mating surfaces. Individual connection to stand-alone ISO 16028 couplings and simultaneous multiple connection by means of a lever mechanism are both available options. When coupled to stand-alone couplings, disconnection is triggered by pushing the acetal resin button. Colored buttons help to avoid mix up of hydraulic lines.

Applications

• Agriculture
• Construction equipment
• Industrial

Items — Female (select available part numbers and main specs)
FFHB 06 F G
D1: 30 mm
L1 (Length uncoupled): 69.4 mm
Flow Rate: 45 l/min at 0.2 MPa
Seals: PUR
Weight: 268 g
* Yellow acetal resin button

FFHB 06 F N
D1: 30 mm
L1: 69.4 mm
Flow Rate: 45 l/min at 0.2 MPa
Seals: PUR
Weight: 268 g
* Black acetal resin button

FFHB 08 F G
D1: 38 mm
L1: 74.6 mm
Flow Rate: 110 l/min at 0.2 MPa
Seals: PUR
Weight: 450 g
* Yellow acetal resin button

FFHB 08 F N
D1: 38 mm
L1: 74.6 mm
Flow Rate: 110 l/min at 0.2 MPa
Seals: PUR
Weight: 450 g
* Black acetal resin button

FFHB 12 F G
D1: 46 mm
L1: 96.3 mm
Flow Rate: 150 l/min at 0.2 MPa
Seals: PUR
Weight: 780 g
* Yellow acetal resin button

FFHB 12 F N
D1: 46 mm
L1: 96.3 mm
Flow Rate: 150 l/min at 0.2 MPa
Seals: PUR
Weight: 780 g
* Black acetal resin button

Accessories & Spares

• FFHB 06 TOOL — Tool, Steel (for 3/8" size)
• FFHB 08 TOOL — Tool, Steel (for 1/2" size)
• FFHB 12 TOOL — Tool, Steel (for 3/4" size)

Identification tags (kits)

• K SPINT 2P06 B — Blue — Kit containing 10 blue acetal resin buttons for FFHB cartridges 3/8"
• K SPINT 2P06 G — Yellow — Kit containing 10 yellow acetal resin buttons for FFHB cartridges 3/8"
• K SPINT 2P06 R — Red — Kit containing 10 red acetal resin buttons for FFHB cartridges 3/8"
• K SPINT 2P06 V — Green — Kit containing 10 green acetal resin buttons for FFHB cartridges 3/8"

Notes
Cartridges are intended for frontal installation into manifold cavities. Simultaneous multiple connection is available via a lever mechanism. Disconnection of stand-alone coupling is performed by pushing the acetal resin button. Colored buttons (yellow, black, blue, red, green) help avoid hydraulic line mix-ups.

Technical specifications

• Series Interchange: ISO 16028
• Valve Type: Flat
• Connection: Push to connect
• Disconnection: Sleeve retraction
• Connection under pressure: Not allowed
• Material: Steel
• Seals: PUR
• Surface treatment: MATE 1000 (ZnNi)
• Working temperatures: -25 °C to 100 °C
• Burst pressure and performance by dash size:
  06 (10 mm): Working Pressure 35 MPa; Flow Rate 45 l/min at 0.2 MPa; Spillage 0.008 ml; Female burst pressure 140 MPa; Male+Female burst pressure 180 MPa
• 08 (12.5 mm): Working Pressure 35 MPa; Flow Rate 110 l/min at 0.2 MPa; Spillage 0.01 ml; Female burst pressure 140 MPa; Male+Female burst pressure 160 MPa
• 12 (19 mm): Working Pressure 35 MPa; Flow Rate 150 l/min at 0.2 MPa; Spillage 0.02 ml; Female burst pressure 140 MPa; Male+Female burst pressure 140 MPa
• Exceptions: Cartridge to be installed in dedicated housing as per Faster technical Drawing DN000071.
