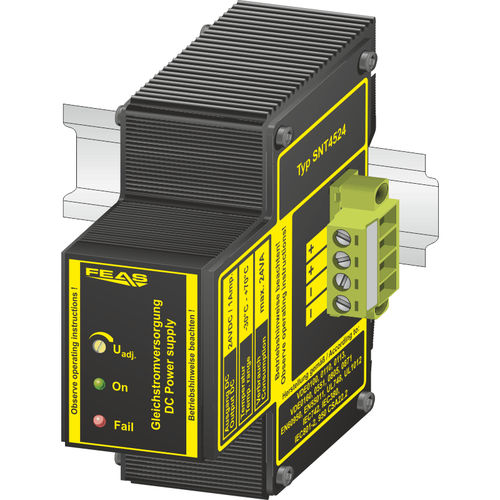

DIN rail power supply SNT4524

wall-mountDC/DCAC/DC

The power supplies of the series SNT45 are powerful and robust power supplies to power sensitive loads in rugged industrial environments. Because of their design, they are particularly suitable for use in control cabinets. The functional and stable housing combines modern design with good radio interference and high reliability for long-term use. The short circuit protected DC output voltage of this design is adjustable. The output current can rise in the short term to over 200% of the nominal value, so the power supplies very well suited for loads with high inrush current. Boost with 200% Operating status shown by LED Enclosure for distribution-panels Parallel connection possible Short circuit proof Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Adjustment range: - 22.5 - 30.0 VDC Efficiency: - 79% Residual ripple: - < 25mVSS Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 41.0 x 90.0 x 78.0 mm Weight: - 0.50 kg
