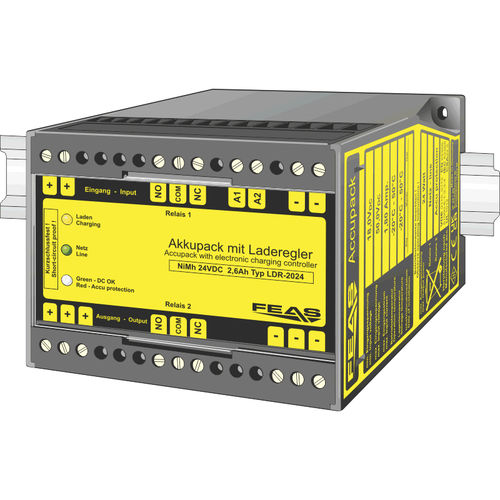

On-line UPS LDR2024

24VDCNi-MHremote monitoring

These FEAS-Accumulator packs with electronic charging regulators are suited to buffer 24 Volt systems. They will ensure the power supply in case of a mains power failure and prevent the loss of your valuable data or the total breakdown of your production line. Regardless of for what you will apply the DC-UPS, you will always have the perfect protection against blackouts, which oftentimes can cause high costs. No overcharging Safeguard against total discharge Messages with remote monitoring Power failure notification Operating status shown by LED Integrated DC-DC Converter No charger necessary Replaceable battery pack - epoxy resin casted Safety acc. to VDE, EN, UL, CSA Battery replacement The replacement of the battery pack is only possible in the factory. (39105) For this DC-UPS recommended power supplies 85 - 270VAC / 120 - 400VAC (switch mode): Power supply SNT4024 115V / 230VAC (smoothed): Power supply PSLC243 85 - 270VAC / 120 - 400VAC (switch mode): Power supply SNT4028 115V / 230VAC (smoothed): Power supply PSLC283 400VAC (smoothed): Power supply PS2LC243 Output current: - 1.0 A Capacity: - 2.6 Ah Efficiency: - 82% Residual ripple: - < 50 mVSS Operating temperature range: - -20°C / +50°C Dimensions (WxHxD): - 100.0 x 75.0 x 110.0 mm Weight: - 1.45 kg
