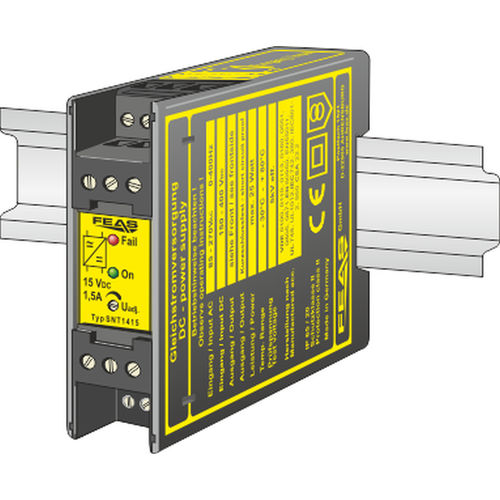

LED lighting power supply SNT1415

DIN railDC/DCAC/DC

The switch-mode power supplies of the SNT14 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this model can be adjusted. This power supply is optimally suited for loads requiring high starting currents. Boost with 200% Operating status shown by LED Parallel connection possible Short circuit proof Suitable for the tropics - epoxy resin casted Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 60950) Safety according to VDE, EN, UL, CSA Output voltage: - 15 VDC Adjustment range: - 10.5 - 17.5 VDC Efficiency: - 80% Residual ripple: - < 50mVSS Operating temperature range: - -40°C / +80°C Dimensions (WxHxD): - 22.5 x 75.0 x 98.5 mm Weight: - 0.3 kg
