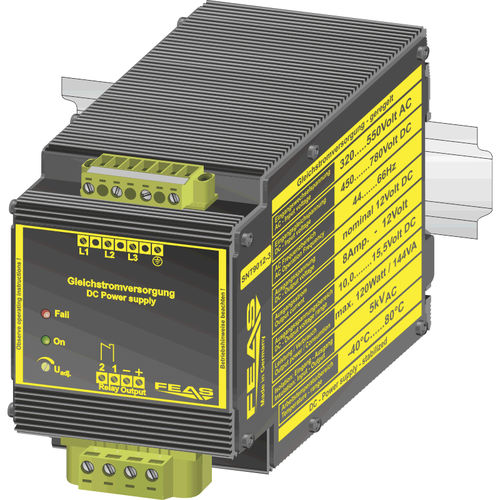

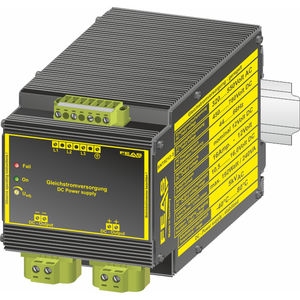

3-phase power supply SNT9012-3

DIN railAC/DCDC/DC

The switch mode power supplies of the SNT90 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current.

• 3-phase input (no loss of performance in 2-phase operation)
• Switch-mode controller with low residual ripple
• Output adjustable
• Boost with 120%
• Switch-mode controller with low residual ripple
• Output adjustable
• Boost with 120%
• Operating status shown by LED
• Parallel connection possible
• Short circuit proof
• Output protected against polarity reversal
• Suitable for the tropics - epoxy resin casted
• Output separated according to VDE 0551
• Extra low safety potential PELV (EN 60204), SELV (EN 62368)
• Safety according to VDE, EN, UL, CSA

Adjustment range: 10.0 - 15.5 VDC
Efficiency: 88%
Residual ripple: < 25 mVSS
Operating temperature range: -40°C / +70°C
Dimensions (WxHxD): 79.0 x 100.0 x 120.0 mm
Weight: 1.60 kg
