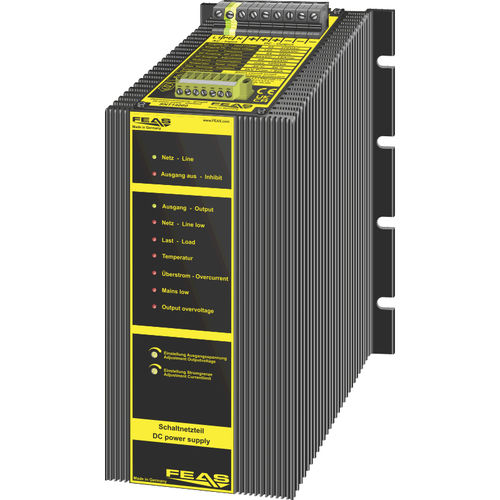

SMPS power supply SNT14060

wall-mountAC/DCDC/DC

The switch mode power supplies of the SNT140 series are powerful and robust devices to power sensitive loads in a hard industrial environment. These features result from the modern construction with a good radio shielding and high reliability integrated in a functional and stable casing. The short circuit proof output DC voltage of this type can be adjusted. The output current can rise to 120% of rating, therefore this power supply is suitable for loads requiring high starting current. Boostfunction: 120% Iout Fuse Mode: safe, permanent shutdown on overload, adjustable Device protection: shutdown on overtemperatur, automatic restart Standby-Function: turn off the output Relaiy-contacts for remote monitoring Integrated 0-10 V interface for controlling the output voltage (Dimmer) Comprehensive microprocessor-controlled monitoring management with LED display Parallel connection possible Output protected against polarity reversal Short circuit proof Suitable for the tropics - epoxy resin casted vibration proof Output separated according to VDE 0551 Extra low safety potential PELV (EN 60204), SELV (EN 62368) Input voltage: 85-270 VAC / 120-400 VDC Output voltage: 60 - 72 VDC (adjustable) Output current: 15.0 A Operating temperature range: -40°C / +80°C Dimensions (WxHxD): 148.0 x 256.0 x 167.5 mm Weight: 10.5 kg
