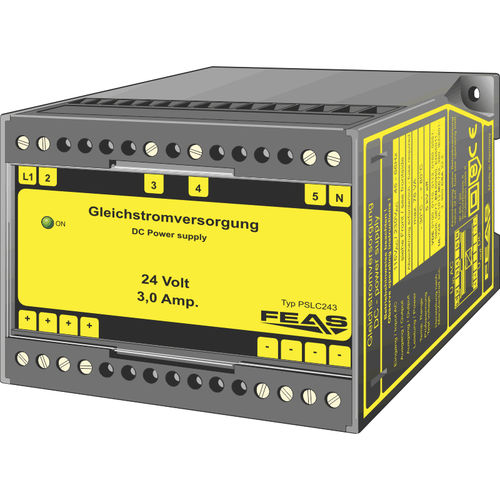

Unregulated power supply PSLC243

DIN railAC/DCsmoothed output

Product information "Power supply PSLC243" The power supplies of the PSLC3 series are powerful and robust devices to power electrical loads, like contactors, magnetic switches, magnetic valves, relays or similar. Power supplies of this type are suitable as well for most PLC applications. By using only a few components, the simple circuit arrangement guarantees the advantage of a long lifespan and a high degree of efficiency (>80%). This power supply is optimally suited for loads requiring high starting current. The output voltage is short circuit proof. Because of its robust design, cast in a stable polycarbonate housing, it is particularly suitable for use in rough industrial environments, e.g., in shipbuilding. Furthermore, it is quite insensitive to surge voltages. - Output separated according to VDE 0551 - Smoothed output - Overload- and open circuit protected - Extra low safety potential PELV (EN 60204), SELV (EN 62368) - Short circuit proof - Operating status shown by LED - Parallel connection possible - Suitable for the tropics - epoxy resin casted - Safety acc. to VDE, EN, UL, CSA Technical Specifications: - Input voltage (VAC): 115 VAC / 230 VAC (45-66 Hz) - Output voltage: 24 VDC - Output current: 3.0 A - Power: 72.0 W - Efficiency: 86% - Residual ripple: < 3% - Operating temperature range: -30°C / +80°C - Dimensions (WxHxD): 100.0 x 75.0 x 110.0 mm - Weight: 1.74 kg - Mounting: On rails acc. to DIN 46277, wall mounting possible
