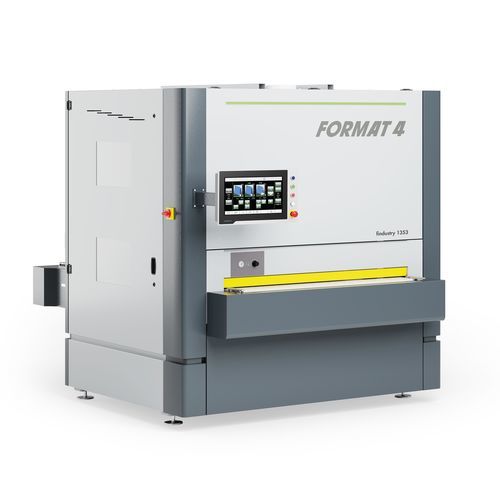

Roller sander findustry 1353

wide-beltstationaryelectric

Overview
FORMAT4 findustry wide belt sanding machines (models 1352 | 1353 | 1354) are industrial, modular wide belt sanders configurable to specific production requirements. Machines can be equipped with two, three or four processing units to match application needs and ensure consistent surface quality and throughput.

Operating comfort / Control
The machine is equipped with an 18" smartouch control on a swivel arm for intuitive operation. Infeed height is adjustable in 0.1 mm increments. Optional automatic thickness measurement (TDP) and wireless thickness measurement simplify setup. The fixed infeed table height is 900 mm for ergonomic handling and easy integration into production lines.

• 18" smartouch display with swivel arm
• 100 program memory spaces
• Control of processing units, feed speed adjustment, sanding height setting in 0.1 mm steps
• Adjustment of sanding pad parameters, maintenance intervals and plain-text error messages

Configuration & Modules
Modular machine design allows tailored configurations with a variety of processing units and finishing packages. Typical modules and options include contact-roller aggregate, cutterblock/planer unit, combination sanding unit, Superfinish unit, sanding pad units (EP/ESC), cross-belt sanding aggregate, planetary sanding unit, pressure shoes, vacuum table, roller table extensions, feeder table with fixed feeding height and brushing equipment. Wireless thickness measurement and the Thickness Detection Professional (TDP) option are available for automatic, high-precision height control.

• Modularly equipped with 2 / 3 / 4 units depending on model
• Options: cutterblock planing head, Superfinish unit, cross-belt sanding aggregate, planetary sanding unit, brushing equipment
• Electro-pneumatic segmented sanding shoe "silicon-Tec" for optimized sanding pressure
• Electro-pneumatic sanding pads to prevent sanding through veneered surfaces

Model variants (comparison)
Key model differences:

• findustry 1352 — modularly equipped with two units (examples: cross-belt unit, contact-roller module, combination sanding unit, Superfinish, sanding pad units, cutterblock)
• findustry 1353 — modularly equipped with three units (cross-belt unit, contact-roller module, combination sanding unit, Superfinish, sanding pad units, cutterblock)
• findustry 1354 — modularly equipped with four units (cross-belt unit, contact-roller module, combination sanding unit, Superfinish, sanding pad units, cutterblock)

Performance & Feed
Performance figures and feed parameters relevant for production planning:

• Sanding height range (machine): 3–170 (200) mm
• Sanding width: 1,350 mm
• Feed speed: variable — typically 2.8–20 m/min
• Superfinish unit cutting speed: 2.4–19 m/s; sanding belt 1370 x 2620 mm
• Cross-belt sanding aggregate cutting speed: 3–22 m/s; sanding belt 150 x 5000 mm

Important details / Highlights

• Industrial performance with high modularity to meet surface finish and production efficiency targets
• Fixed infeed table height (900 mm) and feeder table for ergonomic processing
• Vacuum table option for thin, small or smooth workpieces
• Roller table extensions available for infeed and outfeed
• Pressure shoes for uniform pressure and reduced minimum part length
• Wireless thickness measurement for measuring before the machine and wireless data transfer

Details (components & functions)

• Contact roller aggregate: profiled contact roller (D = 180 mm, 85° shore) for accurate calibration
• Cutterblock planing head: optional first processing unit for high cutting performance; activated via central control
• Sanding pad aggregate: electro-pneumatic sanding pad lowers to exact height to avoid sanding through veneers
• Combination sanding unit: roller diameter 140 mm for calibration of solid wood; suitable for intermediate lacquer sanding
• Electro-pneumatic segmented sanding shoe "silicon-Tec": 27 mm segment width, silicone technology, pressure adjustable in 0.1 bar increments
• Superfinish Unit: felt-glide coating (chevron belt) for softer sanding pressure on lacquered/high-gloss surfaces; electro-pneumatic belt oscillation
• Cross-belt sanding aggregate: standard equipment for lacquered/high-gloss surfaces; removes raised fibers crossing the grain
• LACQUER-Planet Sanding Unit: planetary brush system for fine finish on crossed grain
• Pressure shoe: uniform pressure against feed table for thin workpieces and reduced minimum length
• 18" smartouch control: swivel arm, 100 program memory spaces, feed speed adjustment, sanding height 0.1 mm steps
• Wireless thickness measurement: automatic measurement transferred wirelessly; sanding depth set via adjustment wheel
• Thickness Detection Professional (TDP) option: fibre optic and laser sensors to auto-adjust passage height deducting desired chip removal
• Feeder table with fixed feeding height: feed speed adjustable from control panel (2.8–20 m/min)
• Vacuum table: holds small/smooth/thin parts via vacuum feed belt holes
• Roller table extensions: optional infeed and outfeed roller extensions
• Brushing equipment: optional delivery-side brushing for cleaning, polishing or structuring

Technical specifications

• Product family: FORMAT4 findustry
• Model: findustry 1353 (variants: 1352, 1354)
• Sanding width: 1,350 mm
• Sanding height (adjustable): 3–170 (200) mm
• Feed speed (variable): 2.8–20 m/min
• Units: configurable — 2 / 3 / 4 units (depending on model)
• Control: 18" smartouch with swivel arm, 100 program memory spaces, 0.1 mm sanding height increments
• Standard infeed table height: 900 mm
• Options: Wireless thickness measurement, Thickness Detection Professional (TDP), vacuum table, roller table extensions, pressure shoes, Superfinish unit, cross-belt sanding aggregate, planetary sanding unit, brushing equipment
• Superfinish unit cutting speed: 2.4–19 m/s (sanding belt 1370 x 2620 mm)
• Cross-belt sanding cutting speed: 3–22 m/s (sanding belt 150 x 5000 mm)
• Electro-pneumatic segmented sanding shoe segment width: 27 mm; pressure adjustable in 0.1 bar increments
