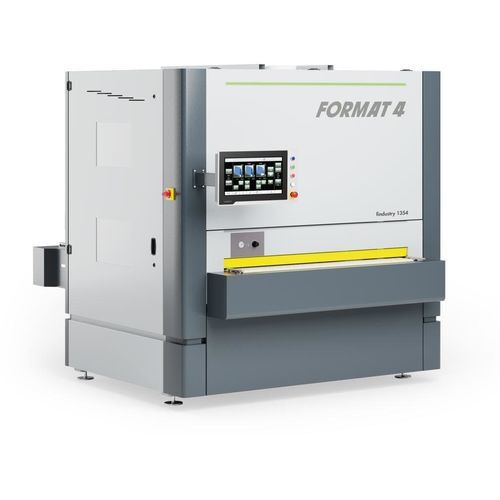

Roller sander findustry 1354

planetarywide-beltbelt

Overview
Industrial wide-belt sanding machine designed for configurable surface finishing. The findustry 1352 | 1353 | 1354 family is available with two, three or four units and can be adapted precisely to required finish quality and processing throughput.

Comfort & Control

• 18" Smartouch touchscreen with swivel arm for ergonomic operation
• Intuitive interface with clear structure; infeed height adjustable to 0.1 mm
• 100 program memory slots; control of individual units; feed speed adjustment; sanding height setting in 0.1 mm increments; sanding pad parameter adjustments; maintenance intervals and plain-text error messages

Configuration & Modularity
Modular design allows exact selection of two, three or four processing units to match application needs. Optional modules include cross-belt unit, contact-roller module, combination sanding unit, Superfinish unit, sanding pad units (EP/ESC), planer cutterhead unit, planet sanding unit and various lacquer/varnish packages.

Key Features & Options

• Fixed infeed table height 900 mm for integration into production lines
• Vacuum table option for small, thin or unstable workpieces (vacuum via high-pressure fan coupled with feed)
• Table extensions with rollers on inlet and outlet sides (optional)
• Pressure shoes to ensure uniform pressure on thin workpieces and reduce minimum processing length (optional)
• Electro-pneumatic segmented sanding shoe "silicon-Tec" with 27 mm segments; pressure adjustable in 0.1 bar increments
• Superfinish unit with felt glide coating (chevron belt) for lacquered/high-gloss surfaces; electro-pneumatic belt oscillation; belt speed 2.4–19 m/s
• Cross-belt sanding aggregate for high-gloss finish (standard on some configurations) with electro-pneumatic sanding pad and chevron belt; belt speed 3–22 m/s
• Feeder table with fixed feeding height and continuously adjustable feed speed from control panel (standard 2.8–20 m/min)
• Automatic thickness measurement options: Wireless thickness measurement and Thickness Detection Professional (TDP) with fibre optic and laser sensors for automatic workpiece thickness detection and infeed adjustment
• Feed speed ranges provided in m/min and inches/min where applicable

Variants / key data

• Variant: findustry 1352 — modular with two units; sanding height: 3–170 (200) mm; sanding width: 1,350 mm; feed speed: variable (approx. 110 1/4"–787 3/8" in/min)
• Variant: findustry 1353 — modular with three units; sanding height: 3–170 (200) mm; sanding width: 1,350 mm; feed speed: variable (approx. 110 1/4"–787 3/8" in/min)
• Variant: findustry 1354 — modular with four units; sanding height: 3–170 (200) mm; sanding width: 1,350 mm; feed speed: variable 2.8–20 m/min (110 1/4"–787 3/8" in/min)

Additional highlights

• Wireless thickness measurement enables measurement upstream of the machine and transfers data wirelessly to the machine
• Optional cutterblock planing head as first processing unit for high cutting performance (activation from central control)
• Optional brushing equipment on delivery side for cleaning, polishing or structuring the workpiece surface

Technical specifications

• Sanding width: 1,350 mm (53 1/8")
• Sanding/pass height: 3–170 (200) mm (approx. 1/8"–7 7/8")
• Feed speed: variable, typical range 2.8–20 m/min (approx. 110 1/4"–787 3/8" in/min)
• Fixed infeed table height: 900 mm
• Control: 18" Smartouch touchscreen (swivel arm)
• Units: configurable (2 / 3 / 4) including cross-section, combination sanding, Superfinish, sanding pad units (EP/ESC), planer cutterhead, planet sanding unit, lacquer/varnish packages
• Sanding belts/pads examples: Superfinish belt 1370 x 2620 mm; cross-belt 150 x 5000 mm (sizes vary by unit)
• Electro-pneumatic segmented sanding shoe available; sand-pad pressure adjustable from infeed side
• Automatic thickness measurement: Wireless and Thickness Detection Professional (TDP) with fibre optic / laser sensors (optional)
• Vacuum table and roller table extensions available as options
