Disc sanding machine finebrush 953

rollerbeltstationary

Overview
Format4 finebrush 953/1353/1355: new brush sanding machines for universal applications. Available in 3- or 5-brush unit configurations (abrasive, circular or cleaning brushes) suitable for coarse, fine, intermediate and finishing sanding on paint and structured wood. Each brush unit can be fitted with different grit combinations to reduce abrasive changes and increase workshop, trade and industrial efficiency.

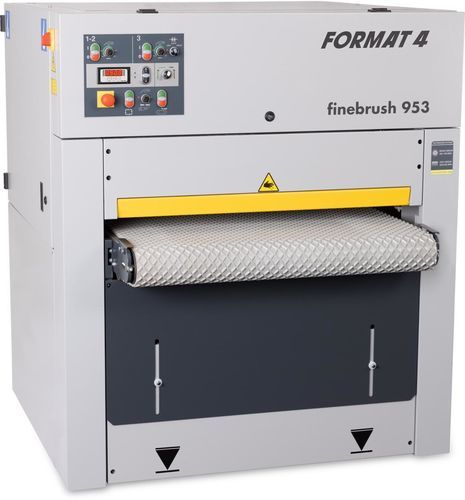

finebrush 953
The finebrush 953 is characterised by a compact installation footprint and broad versatility. Intuitive operation via a control display with clear function representation. Electric adjustment of the feed table height in 0.1 mm increments with digital height readout. Working height can also be fine-tuned by a handwheel on the units. Optional table extensions with infeed and outfeed rollers are available for larger workpieces.

finebrush 1353 / finebrush 1355
Control via a clearly structured touchscreen; thickness adjustment in 0.1 mm increments directly from the panel. Infeed table with fixed height of 900 mm (finebrush 1355) for easy integration into production lines. Vacuum table and roller-equipped extensions available to improve handling and machining conditions.

Optimal combination of units

• Arrangement of longitudinal brushes and rotary brushes for homogeneous results even on difficult workpieces.
• Processing with overlapping in synchronous and counter-rotation and rotating processes for hard-to-reach areas.
• Sharp edges are slightly rounded and prepared for surface treatment.

Control and operation

• Clear and intuitive control panel; for 1353/1355 models control is by touchscreen (15" on some versions).
• Table and working depth adjustment with 0.1 mm precision from the panel or via direct handwheel on each unit.
• Selection of rotation direction and speed of brushing units from the panel.
• Additional functions: 100 program memory slots, maintenance intervals, readable text messages.

Operational advantages

• No grit change: sanding brushes are designed with dual grit, enabling fine to intermediate sanding without changing abrasive.
• Quick and simple replacement of grinding inserts on longitudinal and disc brushes to reduce setup time.
• Optional: oscillation control (standard/optional depending on model) for even abrasive use and homogeneous results.
• Optional: cleaning blower for workpiece and conveyor belt at machine outlet.

Packages and comfort

• High and consistent performance suitable for industrial use.
• Robust construction with premium components and advanced technical solutions.
• Table extensions, vacuum table and rollers for handling workpieces of different sizes.
• Compact design (especially finebrush 953) allows installation in workshops with limited space.

Variant information (summary)

• finebrush 953: Working width: 950 mm; Sanding height: 3–140 mm; Feed speed: continuous 1–5 m/min; 3 brushing units (fixed configuration): longitudinal brush unit, longitudinal brush unit, circular brush unit; continuous speed adjustment.
• finebrush 1353: Working width: 1350 mm; Sanding height: 3–140 mm; Continuous feed speed: 0.6–8 m/min; 3 adjustable brushing units (configurable order): 2 longitudinal brush units and 1 circular brush unit; continuous speed adjustment.
• finebrush 1355: Working width: 1350 mm; Sanding height: 3–140 mm; Continuous feed speed: 0.6–8 m/min; 5 configurable brushing units (includes circular and cleaning brushes); 15" touchscreen control; continuous speed adjustment.

Technical features / specifications

• Models: finebrush 953, finebrush 1353, finebrush 1355.
• Working widths: 950 mm (953), 1350 mm (1353/1355).
• Sanding height range: 3–140 mm (all variants).
• Feed speeds: finebrush 953 = 1–5 m/min (continuous); finebrush 1353/1355 = 0.6–8 m/min (continuous).
• Brushing units: finebrush 953 = 3 (2 longitudinal + 1 circular); finebrush 1353 = 3 configurable (2 longitudinal + 1 circular); finebrush 1355 = 5 (freely configurable including circular and cleaning brushes).
• Unit types: longitudinal brushes (2x in several configurations), disc/circular brushes (250 mm and other dimensions depending on unit), abrasive longitudinal brushes of 200 mm for longitudinal operations (motors 150–600 rpm adjustable), circular brushes with 2 oscillating brushes (250 mm, 250–750 rpm in some cases).
• Adjustments: electric table height with 0.1 mm increments; fine adjustment from touchscreen; working depth with handwheel on each unit.
• Control: intuitive control display; for 1353/1355 touchscreen control (15" available); functions: rotation direction selection, unit speed adjustment, memory programs, maintenance intervals and text messages.
• Infeed table: fixed height 900 mm available on models for line integration (especially 1355); vacuum tables and roller-equipped extensions available.
• Oscillation: oscillation control for even abrasive use (standard or option depending on model).
• Options: cleaning blower at outlet, vacuum table, roller extensions, unit configurations according to needs.
• Applications: sanding of filled doors, profiles, frames, structured wood surfaces, fine, intermediate and finishing sanding on paint and lacquers.
