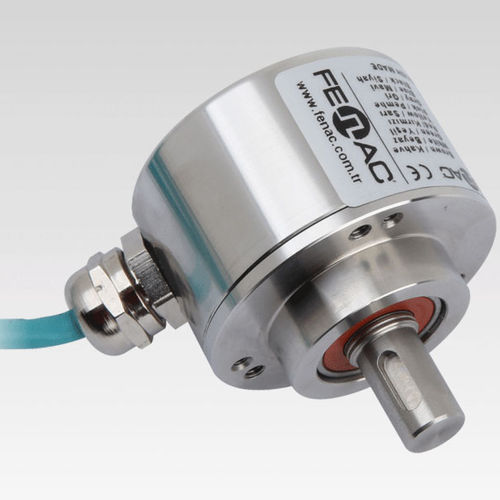

Heavy-duty rotary encoder FNC 58SS
opticalmagneticflange

heavy-duty rotary encoder
heavy-duty rotary encoder
Add to favorites
Compare this product


Characteristics

Technology
optical, magnetic
Construction
flange
Output signal
analog
Material
stainless steel
Protection level
rugged, standard, IP67
Other characteristics
heavy-duty
Housing diameter

58 mm
(2.28 in)

Description

General Features •Industry 58 mm standard size, clamping flange •Stainless Steel •Robust mechanical and electrical construction •Protection up to IP67 •Up to 65.536 PPR max. •<300 kHz frequency •Optical or magnetic system Flange Diameter: 58 mm, Supply Voltage : 5Vdc, 5-30Vdc, 10 - 30Vdc, Connection Type: 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M12/4pin, M12/5pin, M16/7pin, M16/14pin, M23/12pin, Shaft Diameter : 8 mm, 10 mm, 12 mm, 14 mm, Pulse : 10, 16, 25, 30, 40, 50, 60, 88, 90, 100, 141, 200, 250, 300, 360, 400, 500, 512, 600, 720, 800, 900, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 3000, 3600, 4000, 4096, 5000, 6000, 8000, 8192, 10000, 12500, 16384, 20000, 25000, 65536, Output Circuit / Push-Pull: A:1, AB:2, ABZ:3, AB+A'B:4, ABZ + A'B'Z':6, Product Group : Heavy Duty Rotary Encoders, Analog Output Type
