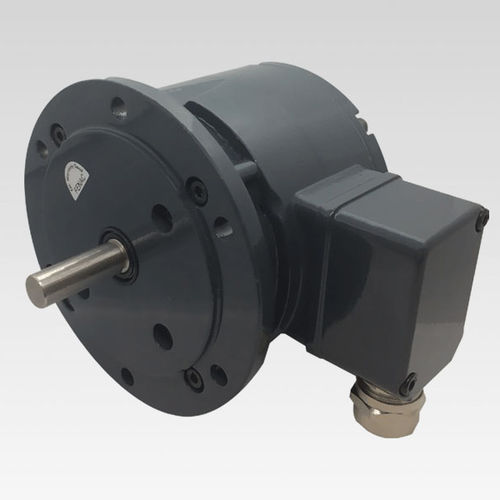

Heavy-duty rotary encoder FHD S115 seriesopticalsolid-shaftflange
Add to favorites
Compare this product
Characteristics
- Technology
- optical
- Construction
- solid-shaft, flange
- Output signal
- analog
- Material
- aluminum
- Protection level
- rugged, IP66
- Other characteristics
- compact, high-speed, heavy-duty, redundant, for high shaft loads
- Housing diameter
115 mm
(4.53 in)
Description
General Features
•Robust, compact housing
•Two bearings with large distance
•High shaft load up to 400 N
•Highest operating speed 10000 rpm
•Terminal box, 23 connector, Cable options
Flange Diameter: 115 mm,
Supply Voltage : 5Vdc, 5-30Vdc, 10 - 30Vdc,
Connection Type: 1 mt Cable, 2 mt Cable, 5 mt Cable, 7 mt Cable, 10 mt Cable, M23/12pin,
Shaft Diameter : 11 mm,
Pulse : 1000, 1024, 2000, 2048, 2500, 4096, 5000, 10000,
Output Circuit / Push-Pull
Product Group : Heavy Duty Rotary Encoders,
Analog Output Type
