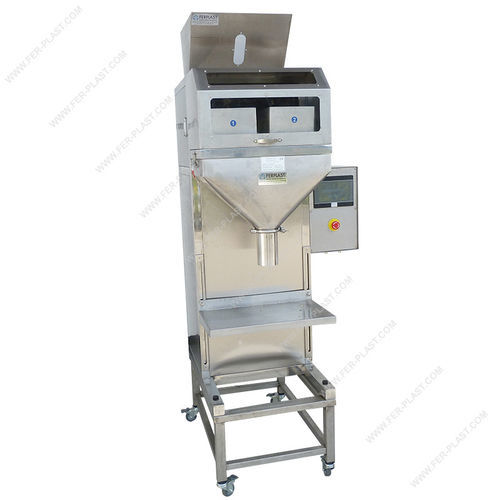

Food dosing and packing machine EWM7000-V2

for pharmaceutical productsfor packagingpowder

ELECTRONIC DOSER WITH VIBRATING CHANNELS EWM7000-V2 WITH 2 INDEPENDENT LOAD CELLS Our electronic doser with load cells is made of AISI 304 stainless steel suitable for food and technical packaging of granular products of different types and grain sizes. Ideal for the automatic dosing of granular or powder products with good flowability, such as detergents, foods, chemical and pharmaceutical products, in pre-formed bags. Not suitable for liquids, saline or corrosive substances. The EWM7000-V2 doser is supplied complete with a trolley support and adjustable support surface, it can be integrated into semi-automatic lines with an operator (or work autonomously where appropriately set up). It is characterized by two independent weighing tanks, of approximately 7 liters each, for a total of 14 liters. The loading hopper located above the vibrating channels has a capacity of approximately 37 liters. The two independent vibrating channels allow you to work in two ways: 1) Dose up to 7 liters using them independently, simply by setting the desired dose for each vibrating channel. 2) Dose up to 14 liters using them simultaneously, setting them to 7 liters each Main features: ✔ AISI 304 stainless steel structure ✔ Motor with PLC for alternating opening of the unloading doors ✔ Feeding hopper above the vibrating channels ✔ Two load cells for weighing ✔ Pedal for product unloading ✔ Intuitive touch-screen for settings and adjustments TECHNICAL DATA - Construction: Stainless steel - Tolerance: ± 0.3% - Weighing speed: 8~10 pieces/minute - Diet: 220V – 50 Hz - Installed power: 700W - Acoustic emission: < 70 dB - Number of vibrating channels: 2 - Weighing tank capacity: ~ 7 Lt - Hopper capacity: ~ 37 Lt - Exhaust pipe height: mm. 760 - Machine dimensions (LxWxH): mm. 790x510x1900 - Machine weight: Kg. 135 OPERATION: The operator must pour the product to be dosed into the upper hopper and set the desired weight directly from the touch-screen display. At this point, he can adjust the vibration speed of the vibrating channels by increasing or decreasing the voltage, or by adjusting the height of the paddles placed in the vibrating channels in order to control the flow of the product. This adjustment allows the doser to quickly lower the main quantity of product and then slow down in the last grams to ensure a precise weight. For example, if the operator must dose 1000 grams, he can set the system so that the first 950 grams descend quickly, while the remaining 50 grams are dosed more slowly to obtain an accurate measurement. Subsequently, it is necessary to turn on the desired vibrating channel or both, to start the descent of the product. Once the set weight is reached, the doser remains in standby. The operator can then place the bag under the discharge pipe and press the pedal or the button on the display to release the product. Once unloading is complete, the system automatically starts the next weighing, unless the vibrating channels are switched off. - Construction: Stainless steel (AISI 304) - Tolerance: ± 0.3% - Weighing speed: 8~10 pieces/minute - Power supply: 220V – 50 Hz - Installed power: 700W - Acoustic emission: < 70 dB - Number of vibrating channels: 2 - Weighing tank capacity: ~7 liters each (total 14 liters) - Hopper capacity: ~37 liters - Exhaust pipe height: 760 mm - Machine dimensions (LxWxH): 790x510x1900 mm - Machine weight: 135 kg
