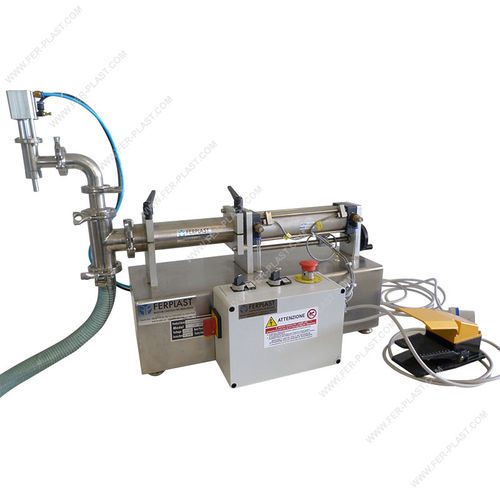

Liquids dosing dispenser FPL series

volumetricpistonfor the food industry

Volumetric dispensers pneumatically operated series FP-L for the dosing of liquid products. Structure in stainless steel with legs for installation on a workbench (optional). Easy to use and clean for small workshops and for frequent variations in production. Ideal for dosing of food, chemical, cosmetic, pharmaceutical, etc. Available in 5 models with max capacity 50 ml - 250 ml - 500 ml - 1000 ml - 2000 ml. - Model: FPL-50T, FPL-250T, FPL-500T, FPL-1000T, FPL-2000T - Voltage: 220V/50Hz - Power: 20W - Pressure: 0.4-0.6 Mpa - Capacity: 5-50 ml, 50-250 ml, 100-500 ml, 200-1000 ml, 300-2000 ml - Speed: 10-18 cycles/min, 10-15 cycles/min, 8-12 cycles/min, 5-10 cycles/min - Tolerance: ≤ 3-4% - Dimensions: 77x25x65 cm to 112x25x65 cm - Net weight: 19 kg to 28 kg The data in the table are indicative. They may also vary significantly depending on the type of product to be dosed (density), from the speed at which the dosages are made (compressed air pressure in the implant) and the dosage set (real race that must make the piston). Attention: The machines are supplied complete with CE certification and use and maintenance manual in Italian. If you need to have particular certifications, it is mandatory to request them when ordering. It is not possible to request further documentation or manuals in a different language following the order. - Volumetric dosers FP-L pneumatically operated for liquids - Available capacities: 50, 250, 500, 1000, 2000 ml - Stainless steel structure - Easy to use and clean - Suitable for food, chemical, cosmetic, pharmaceutical industries - Voltage: 220V/50Hz - Power: 20W - Pressure: 0.4-0.6 Mpa - Speed: 5-18 cycles/min depending on model - Tolerance: ≤ 3-4% - Dimensions: 77x25x65 cm to 112x25x65 cm - Net weight: 19 kg to 28 kg
