Loading hopper TR-INOX

unloadingtransportconstruction

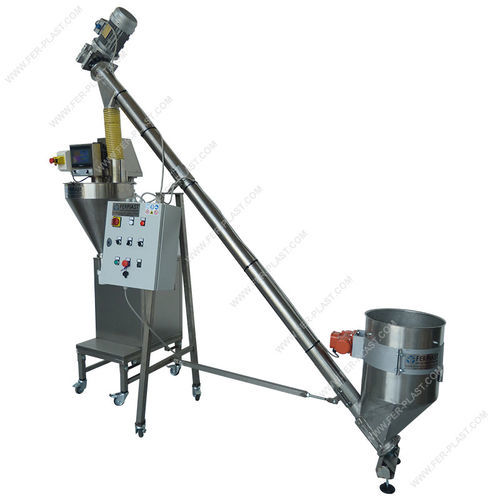

AISI 304 STAINLESS STEEL SCREW LOADING HOPPERThe AISI 304 stainless steel screw loading hopper is designed to facilitate the feeding of dosers and other packaging systems.Thanks to its robust and hygienic construction, it is ideal for the food industry and other sectors that require high standards of cleanliness and safety.Operation: the operator fills the tank positioned on the ground and manually manages the loading of the product into a doser/hopper positioned higher up using the ON/OFF button.The system, suitably set up with a dedicated electrical panel, can be equipped with an automatic management system that activates the screw when the product is missing.Product benefits:Ergonomics and safety: The loading point is located approximately 900 mm from the floor, reducing the physical effort of operators and improving safety in the workplace.Efficient transport: The motorized auger conveys the product directly into the hopper of the doser or other processing machinery, ensuring a constant and controlled flow.Modularity and customization: The basic model is equipped with an ON/OFF switch, while a version with a volumetric/optical sensor installed in the doser tank is available on request. This system allows the auger to activate automatically when the product level drops, optimizing operational efficiency.Easy cleaning: The simplified design allows for rapid removal of residues, making it perfect for applications that require high hygiene standards, such as the food sector.Compatibility: It can be combined with volumetric dosers, automatic scales, packaging systems, mixers and production lines for the transport of powders, granules and other loose products.Flexibility in unloading: The standard unloading point is at 2100 mm, but this can be modified at the time of order to suit specific customer requirements.Cleaning and sanitizationThe auger is entirely cleanable and sanitizable.For a thorough cleaning it can be dismantled, otherwise being stainless steel it can be washed with water.In the basic version it is equipped with an ON/OFF inversion that allows the product to exit from the lower part.The emptying button works with a dead man, i.e. always pressed.Operating speedThe loading speed is fixed and cannot be adjusted.It is possible to equip the machine with a dedicated panel and speed regulator by requesting it when ordering.The capacity can vary depending on the volumetric weight of the product and for special needs it must be checked before ordering.With an inverter the output speed increases by approximately 30%.Auger diameterThe standard version has a diameter of 100 mm.We can make 154 mm or larger augers, to be evaluated at the order stage.Optional VibratorIt is possible to equip the doser with a vibrator that moves the product.The vibrator can be activated manually by the operator and is usually used during the emptying phase.It is usually not left active continuously as it would be very annoying.Ideal for products that tend to compact, ensuring a uniform flow.For automatic applications we can design it so that it activates regularly.All these needs must be specified at the order stage and require a dedicated quote.MODELINOX AISI 304 HOPPERLoading tube diametermm. 100Loading hopper diametermm. 400Loading height from the floor mm. 900Unloading height from floormm. 2000Tube thickness mm. 1,5Internal spiral diametermm. 80Shaft diameter mm. 21Auger length mm. 3000Conical hopper capacity 50 lt.Overall dimensionsmm. 400x2300x2300h.Reduction gear 63W reducer 1:10 mounted on the shaftElectric motor 380V - 50 Hz - 1.5 KwIndicative weight Kg. 100The hopper can also be made with an optional vibration system for compacting products.Model: TR-INOX (External AISI 304 stainless steel hopper with 100 mm diameter motorized auger - complete with motorization and ON/OFF switch and reversal of the direction of rotation for emptying the hopper)Optional: FP-QA (Electrical panel with inverter, speed regulator in product loading. In the models combined with the dosers, it is possible to have the doser and hopper communicate thanks to a sensor for product detection)Optional: VB-ELETT (Electric vibrator to avoid compacting of the product; requires the automatic electrical panel)Technical specifications:Model: INOX AISI 304 HOPPERLoading tube diameter: 100 mmLoading hopper diameter: 400 mmLoading height from the floor: 900 mmUnloading height from floor: 2000 mmTube thickness: 1.5 mmInternal spiral diameter: 80 mmShaft diameter: 21 mmAuger length: 3000 mmConical hopper capacity: 50 litersOverall dimensions: 400x2300x2300h mmReduction gear: 63W reducer 1:10 mounted on the shaftElectric motor: 380V - 50 Hz - 1.5 KwIndicative weight: 100 Kg
