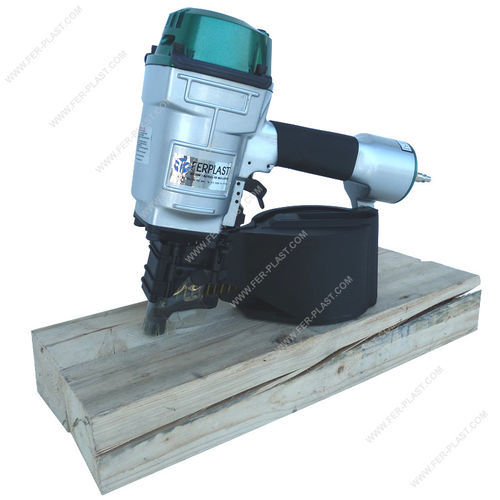

Pneumatic nail gun CN V.70

for wood

Pneumatic nailer for CNW 23 - 25 - 28 - 31 series nailsOur pneumatic nailer CN V.70 is the ideal solution for nailing pallets, crates, fences, and coverings. It is used with nails from the CNW 23 - CNW 25 - CNW 28 - CNW 31 series.The CNW 23-25-28-31 series nails are flat coil, electro-welded nails with a 16° inclination.The usable nails can have a length from 45 to 70 mm, 300 points per coil, available both with smooth shank and with ring or screw shank.- CNW 23: Head diameter 5.4 ÷ 5.9 mm and shank diameter 2.3 mm. Available in lengths 45-50-55-60-65 mm, both smooth and ring/screw shank.- CNW 25: Head diameter 6.2 mm and shank diameter 2.5 mm. Available in lengths 50-55-60-65-70 mm for smooth nails, 45-50-55-60-65-70 mm for ring/screw nails.- CNW 28: Head diameter 6.7 mm and shank diameter 2.8 mm. Available in lengths 60-65-70 mm, both smooth and ring/screw shank.- CNW 31: Head diameter 6.9 mm and shank diameter 3.1 mm. Available in lengths 60-65-70 mm for smooth nails, 60-64-70 mm for ring/screw nails. FEATURES OF THE NAILER:MODELCN V.70Magazine capacity (number of points)225÷300Dimensions323x128x320 mmAir consumption2.08 liters/shotPressure5÷8 barSound pressure at operator position90.8 dB(A)Emitted sound power103.8 dB(A)Weight3.70 kgUsable nails45÷70 mmType: Pneumatic nailer for CNW 23/25/28/31 series nailsMagazine capacity: 225-300 nailsDimensions: 323x128x320 mmAir consumption: 2.08 liters per shotOperating pressure: 5-8 barSound pressure at operator: 90.8 dB(A)Emitted sound power: 103.8 dB(A)Weight: 3.70 kgUsable nail length: 45-70 mm
