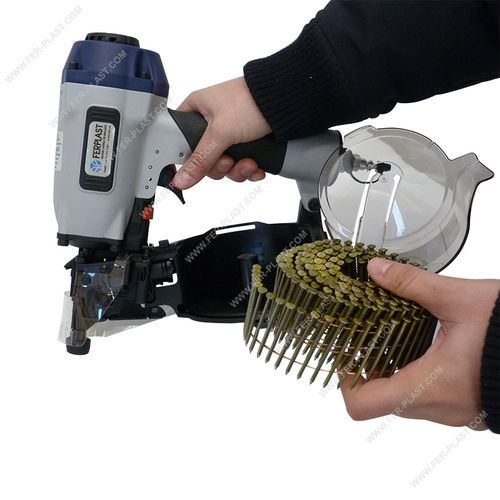

Pneumatic nail gun CNW 203

for palletfor woodautomatic

Pneumatic nailers for nails in roll series CNW 203. Available models: CN 23.57 for nails from 25 to 57 mm in roll plate, with hammer firing and 360° orientable deflector device. CN 25.50 for nails from 32 to 50 mm flat or conical rolls, with magnesium body, depth adjuster, single shot/hammer and 360° orientable deflector device. CN 25.65 for nails from 38 to 65 mm in roll plate, with magnesium body, hammer firing and 360° orientable deflector device. CN V.57 for nails from 25 to 57 mm in roll plate. These models are an excellent solution for nailing pallets, crates, fences and walls. The nails roll series CNW 203 are characterized by: head diameter 5.2 mm, section diameter of 2.1 mm, length 28-32-35-38-40-45-50-55 mm, flat rolls, 350 points per roll, available either in smooth shank version, and ring or screw shank version. NOTE: The nailers can fix nails from 25 to 65 mm, but the nails Series CNW 203 are only available from 28 to 55 mm. Type: Pneumatic nailers for nails in roll. Compatible nails: CNW 203 series, length 28-55 mm, head diameter 5.2 mm, shank diameter 2.1 mm. Roll type: Flat roll, 350 nails per roll. Available shank types: Smooth, ring, or screw. Applications: Pallets, crates, fences, walls. Models: CN 23.57, CN 25.50, CN 25.65, CN V.57. Air consumption: 1.65-1.90 lt/hit. Operating pressure: 5-8 Kg/cm². Weight: 2.00-2.75 kg. Body: Magnesium (for CN 25.50 and CN 25.65). Features: 360° orientable deflector, depth adjuster (CN 25.50), single shot/hammer (CN 25.50).
