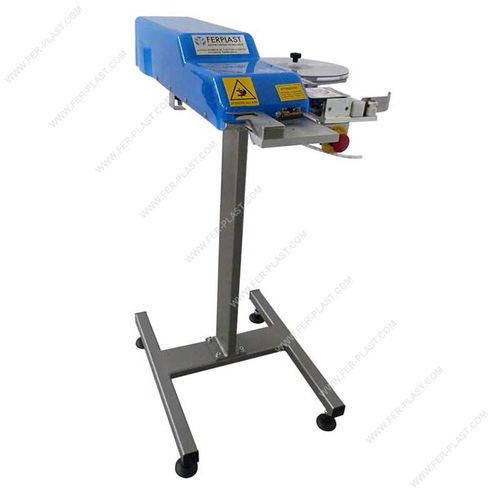

Hot air sealer SM series

semi-automaticfoodbag

PNEUMATIC SEALER SM 35/40A - WITH DATE PUNCHER Pneumatic sealer SM 35/40 A for closing bags in any material using an aluminum plate with a height of 5/7 mm. All parts in contact are made of AISI 304 stainless steel suitable for contact with food.The seal is obtained from a coil with high autonomy, cut to a length of 35/40 mm, wrapped around the neck of the bag and finally pressed to form a flat closure.The machine is set up for a kit that can be purchased when ordering which includes date stamp and numerical punchesAvailable in the following models:SM 35 A 5: Aluminum seal width 5 mm - thickness 0.6 mm - length 35 mmSM 40 A 7: Aluminum seal width 7 mm - thickness 0.6 mm - length 40 mmMODELSM 35 A - 5 mmSM 40 A - 7 mmMachine power supplyPneumaticPneumaticAir consumption50 liters/minute50 liters/minuteOperating pressure6 bar6 barMaximum closing speed30 pz./min30 pz./minAluminum seal dimensionsWidth 5 mmThickness 0.6 mmLength 35 mmWidth 7 mmThickness 0.6 mmLength 40 mmAutonomyabout 2800 closuresabout 2500 closuresAluminum strip length100 m100 mClosure typeAesthetically elegant flat sealMachine dimensions600x500x990h mm600x500x990h mmMachine weight45 kg45 kgPrint line12PUNCHES INCLUDED IN THE OPTIONAL KITThe characters included in the kit are those indicated in the following table (numerical) with a height of 2.5 mm.The fonts are sold only in complete kits. It is not possible to request single characters.STANDARD CHARACTERSQUANTITY N°STANDARD CHARACTERSQUANTITY N°04521462257232824292Pneumatic clipping machine. Uses aluminum band 35/40 mm length, 5/7 mm width.All parts in contact are made of AISI 304 stainless steel, suitable for food contact.Optional kit available with date stamp and numerical punches (characters 0-9, various quantities, 2.5 mm height).Available models: SM 35 A 5 (5 mm width, 35 mm length), SM 40 A 7 (7 mm width, 40 mm length).Technical Specifications:Power supply: PneumaticAir consumption: 50 liters/minuteOperating pressure: 6 barMaximum closing speed: 30 pcs/minAluminum seal dimensions: 5 mm x 0.6 mm x 35 mm (SM 35 A 5), 7 mm x 0.6 mm x 40 mm (SM 40 A 7)Autonomy: approx. 2800 closures (SM 35 A 5), approx. 2500 closures (SM 40 A 7)Aluminum strip length: 100 mClosure type: Flat, aesthetically elegantMachine dimensions: 600 x 500 x 990h mmMachine weight: 45 kgPrint line: 1 (SM 35 A 5), 2 (SM 40 A 7)
