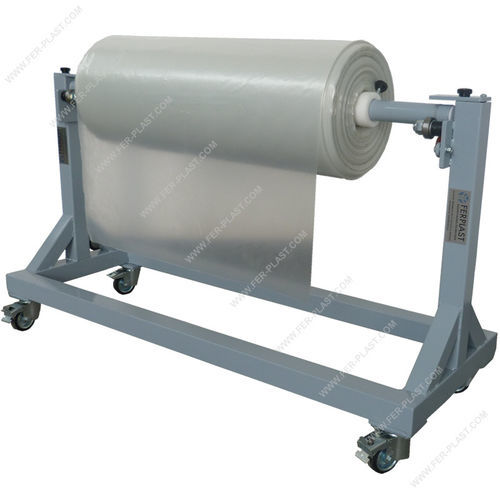

Cutting holder FPPR series

for rollsplasticmetal

Sturdy and professional roll holder suitable for the unwinding of heavy plastic reels film made of polyethylene. Load 100 - 300 Kg STURDY REEL HOLDER WITH IDLE UNWINDING OR BRAKED UNWINDING Very robust reel holder, made of painted tubular steel and equipped with wheels with brake, it supports rolls with a weight of up to 100 kg and allows an operator to carry them out safely. The reel holders are made with the reel axis diameter 60 mm and length up to 2200 mm, very simple to rotate as it is mounted on ball bearings and equipped with cones for locking the reels. Depending on the presence or absence of the brake, the total width of the roll holder is approximately 200/300 mm wider than the useful width. The reel holder axis can be "idle" or "with brake". Reel holder with idle unrolling When the operator pulls the material to unwind it, if he does not pay attention or pulls too hard, he risks unwinding the reel too much as it is not braked. The structure is robust but simple. Reel holder with braked unrolling The reel axle is equipped with an adjustable brake which is always active. When the operator unwinds the material, the brake will make some friction, making sure that the reel does not unwind more than necessary. The metal structure of the model with brake is more complete than the model without brake and also allows the installation of an optional cutting unit. This cutting unit cannot be mounted on the model without brake as it is an integral part of the metal structure, not present on the simple model without braked axle. The model with braked reel axis is also equipped with a rod that allows you to block the film once unwound. MODEL IDLE OR BRAKED REEL HOLDER Reel holder axis diameter 60 mm mounted on ball bearings Useful width can be made to order from 1000 to 2200 mm Load 100 Kg Dimensions depth 600 x height 800 mm The total external width of the roll holder is about 300 mm greater than the useful size. Standard color blue or gray (paintable on request) On request roll holders are available with different widths. We also produce roll holders with high capacities, in this case, the roll holders must be equipped with a pneumatic brake. This allows controlled unwinding of large and heavy rolls. By acting on the pedal, the operator can manage the unwinding of the desired amount of material without effort. OPTIONAL: Sliding cutting unit with trapezoidal blade (cutting in both directions): Upon request we can equip the roll holder with brake with a cutting unit to cut plastic films, polyethylene in foil, bubbles or foam and other plastic protection materials to the desired length. Sliding cutting unit with circular blade for cardboard Footswitch pneumatic brake. The brake unlocks and blocks the rotation of the reel. By pressing the pedal, the rotation of the roll is released, allowing it to unwind. When you release the pedal, the rotation of the roll is locked, holding it in place. This avoids the rewinding of the reel caused by its heavy weight. Model: FPPR (various sub-models: S12, S14, S16, S18, S20, S22, S25, S30, FR12, FR14, FR16, FR18, FR20, FR22, FR25, FR30) Idle or braked reel holder Reel holder axis: diameter 60 mm, mounted on ball bearings Useful width: 1000 to 2200 mm (customizable) Load capacity: 100 kg (up to 300 kg for reinforced models) Dimensions: depth 600 mm x height 800 mm Total external width: about 300 mm greater than useful width Standard color: blue or gray (other colors on request) Optional: sliding cutting unit, footswitch pneumatic brake
