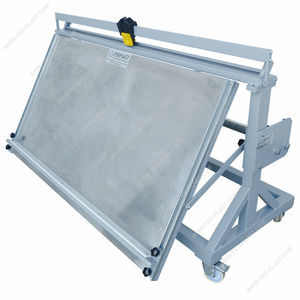

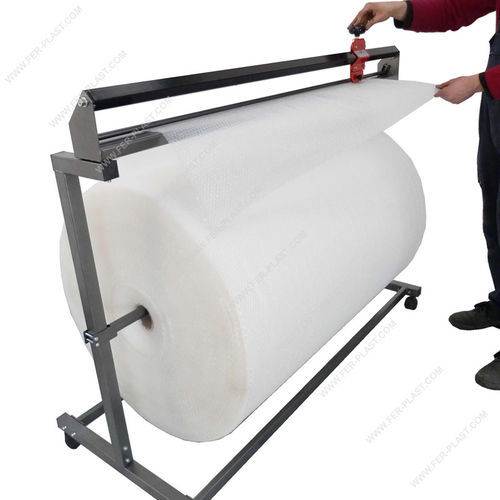

Trapezoidal blade cutter E series

Horizontal cutters for cutting paper, corrugated cardboard, polyethylene film, polyethylene bubbles, polyethylene expanded of thickness up to 6 mm. E SERIES HORIZONTAL CUTTERS Universal cutters for paper, corrugated cardboard, papers and polythene reinforced polyethylene foil, polyethylene bubbles, foam up to 6 mm thick. The use of the cutter is extremely simple: after unrolling the material to the desired length by manually operating the cart, you get a clean and precise cut both ways. All cutters are mounted on swivel casters with brakes. For reasons of space, the product is shipped disassembled. - Model: 100 E, 140 E, 160 E, 200 E, 250 ER - Max. cutting span in cm: 100, 140, 160, 200, 250 - Blade type: Trapezoidal (standard) for the cutting of plastic films - Load: Kg 50 (Kg 100 with option), Kg 100 for 250 ER - Max. roll diameter: cm 100 - Cutter size (cm): Width 118/158/178/218/268, Depth 80, Height 115 - Weight Kg: 22/26/28/30/36 The cutter is supplied complete with CUTTING GROUP MODEL A that is with trapezoidal blades for paper, corrugated cardboard, plastic films such as reinforced polyethylene, pruriball and foam. OPTIONAL STRENGTHENED SUPPORT When ordering, it is possible to request the cutter with a load for reels up to 100 kg, by selecting the optional in the accessories and paying a supplement. - Universal cutters for paper, corrugated cardboard, polyethylene film, polyethylene bubbles, foam up to 6 mm thick - Simple manual operation for precise cuts - Mounted on swivel casters with brakes - Shipped disassembled for space reasons - Supplied with trapezoidal blade group (Model A) - Optional reinforced support for up to 100 kg reels
