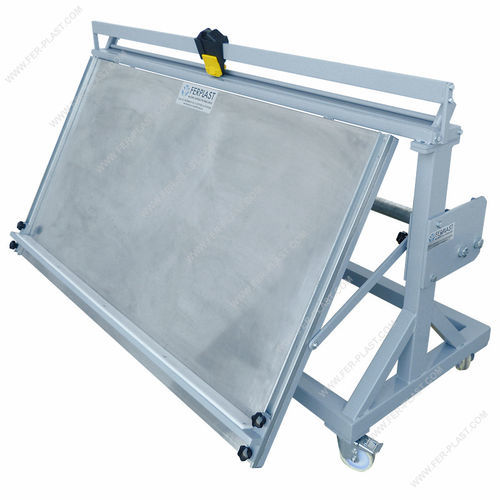

Trapezoidal blade cutter TAG-MIS series

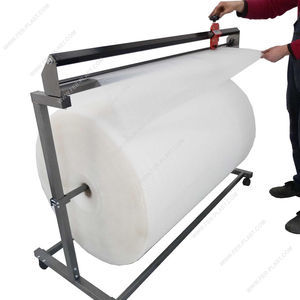

Custom Packaging Cutters We manufacture cutters of any size, suitable for cutting plastic films, foil, bubble or expanded polyethylene, and other plastic protection materials to the desired length. Cutters can be made with: - Supplied in the standard version with cutting unit with trapezoidal blade for plastic films such as polyethylene foil, bubble wrap, foam, and paper. - Upon request, we can supply the cutting unit with circular blade for corrugated cardboard or kraft paper. The cutters are mounted on a frame equipped with a roll holder with a capacity of up to 100 kg and an axis with a diameter of 60 mm. The reel axis is equipped with an adjustable brake which is always active. When the operator unwinds the material, the brake will cause some friction, ensuring that the reel does not unwind more than necessary. The flow rate is to be considered uniformly distributed over the entire length of the pin. Upon request, it is possible to create reinforced frames with a capacity of up to 200 or 300 kg and reel-holding cones with increased dimensions for large reels (such as bubble wrap or foam). - Cutter useful width 1000 mm. complete with sturdy painted structure and wheels with brakes. Braked development. Order form - TAG-MIS120: Cutter useful width 1200 mm capacity 100 kg - complete with sturdy painted structure and wheels with brake - without front inclined plane - Braked unwinding. Price: 1,550.00 € - TAG-MIS160: Cutter useful width 1600 mm capacity 100 kg - complete with sturdy painted structure and wheels with brake - without front inclined plane - Braked unwinding. Price: 1,850.00 € - TAG-MIS200: Cutter useful width 2000 mm capacity 100 kg - complete with sturdy painted structure and wheels with brake - without front inclined plane - Braked unwinding. Price: 2,120.00 € - TAG-MIS300: Cutter useful width 3000 mm capacity 100 kg - complete with sturdy painted structure and wheels with brake - without front inclined plane - Braked unwinding. Price: 3,300.00 € - TAG-PN: Inclined and graduated front plane for cutter. Price: 750.00 € Standard version: trapezoidal blade for plastic films (polyethylene, bubble wrap, foam, paper) Optional: circular blade for corrugated cardboard or kraft paper Frame with roll holder, capacity up to 100 kg (optionally up to 200/300 kg) Reel axis diameter: 60 mm, with adjustable brake Uniform load distribution over pin length Custom reinforced frames and larger cones available for large reels Technical Specifications: - Useful cutting widths: 1000 mm (standard), 1200 mm, 1600 mm, 2000 mm, 3000 mm (see models) - Roll holder capacity: up to 100 kg (optionally up to 200/300 kg) - Frame: sturdy painted structure with wheels and brakes - Adjustable brake on reel axis - Optional inclined and graduated front plane
