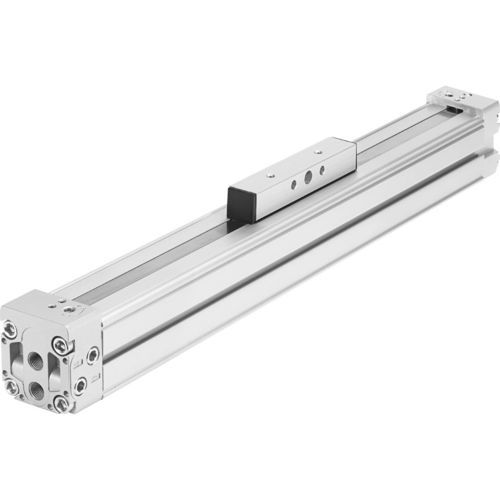

Linear actuator DGC-K series
pneumaticrodlessdouble-acting

linear actuator
linear actuator
linear actuator
Add to favorites
Compare this product


Characteristics

Movement
linear
Type
pneumatic
Technology
rodless
Configuration
double-acting
Applications
guide
Other characteristics
compact, positioning
Stroke

Max.: 8,500 mm (334.646 in)

Min.: 1 mm (0.039 in)

Force

Max.: 3,016 N

Min.: 153 N

Rod diameter

Max.: 80 mm (3 in)

Min.: 18 mm (1 in)

Ambient temperature

Max.: 60 °C (140 °F)

Min.: -10 °C (14 °F)

Description

Positioning actuator with eccentric sealing system for virtually leak-free, long strokes without restrictions. Without external guide, for simple actuation functions. • Compact design: 30% smaller than the basic design DGC-G • Basic actuator without guide, for simple actuator functions • Low moving dead weight • Symmetrical design
