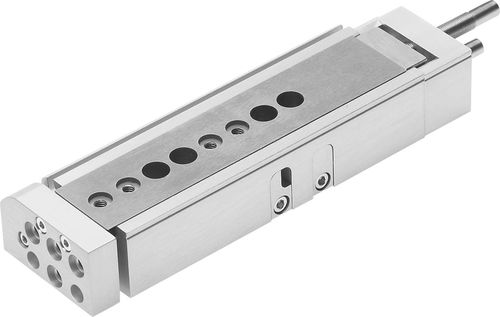

Pneumatic actuator DGSL series linearpistonball return
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- linear
- Technology
- piston, ball return
- Configuration
- double-acting
- Material
- aluminum
- Other characteristics
- compact, precision, slide, high load capacity, guided, position-sensing
- Stroke
Min.: 10 mm
(0.394 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 2.5 bar
(36.26 psi)Max.: 8 bar
(116.03 psi)- Force
Min.: 17 N
Max.: 483 N
- Speed
0.5 m/s, 0.8 m/s
(1.64 ft/s, 2.62 ft/s)- Return speed
1 m/s
(3 ft/s)- Operating Temperature
Min.: 0 °C
(32 °F)Max.: 60 °C
(140 °F)
Description
Slide actuator with ball-bearing guide and diverse adaptation options such as stroke reduction, end-position locking, and clamping unit.
• High load capacity and positioning accuracy
• Maximum movement precision thanks to ground-in ball bearing cage guide
• Maximum flexibility thanks to 8 sizes and a large selection of damping variants
• Variants with clamping unit or end-position locking for fixing the guide carriage
• Wide variety of mounting and attachment options
• Compact design
