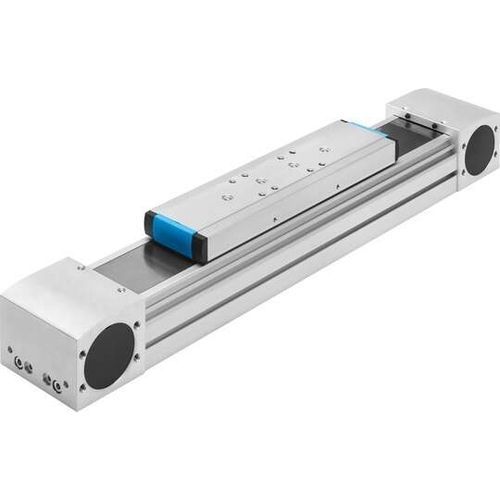

Electric actuator ELGA-TB-KF series lineartiming beltaluminum
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Movement
- linear
- Technology
- timing belt
- Material
- aluminum
- Protection class
- IP54, IP40, robust
- Other characteristics
- slide, with integrated guides
- Stroke
Max.: 1,500 mm
(59.055 in)Min.: 300 mm
(11.811 in)- Force
Max.: 11,000 N
Min.: 350 N
- Torque
Max.: 1,150 Nm
(848.196 ft.lb)Min.: 16 Nm
(11.801 ft.lb)- Speed
5 m/s
(16.4 ft/s)- Max acceleration
50 m/s²
(164.04 ft/s²)- Operating Temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Sturdy and very fast: The belt driven linear actuator ELGA-TB will master your tasks without breaking a sweat. Its internal guides (recirculating ball bearing, roller and sliding guides) and sturdy cover strip make it the perfect choice to handle even your toughest application.
• Ball bearing guide for high loads and torques
• High feed forces
• Precise and resilient guide
• Speeds up to 5 m/s with high acceleration up to 50 m/s²
• Optional: Food-safe (for further information, see www.festo.com/certificates/ELGA_KF)
• Flexible motor mounting
• Guide and toothed belt protected by cover band
• 22 types in stock with short delivery times and modular products for custom variants
