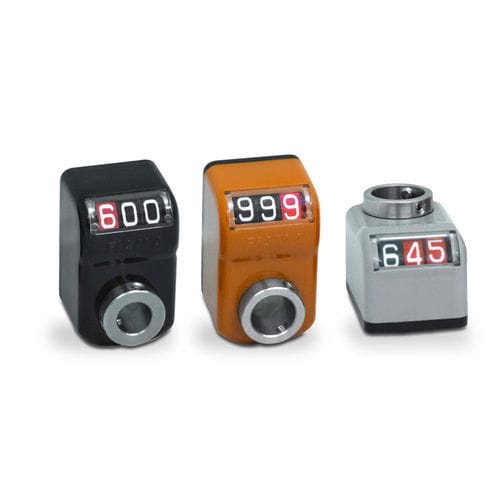

Position indicator OP2

4-digithollow-shaft

• 3 digits counter (standard red digit indicates decimals; on request 2 red digits for hundredths or 3 black digits for mm). Reading until 999. Digit height 6 mm • Particularly suitable for little adjustments in small spaces. • Shock-proof, self extinguishing technopolymer. Protection IP64. Max. temperature 80°C. • Inclined view at 45° for horizontal shafts and for vertical shafts, excellent readabilty given by the means of «magnifying window». • Standard shaft bore Ø8, Ø10 or Ø12. • Hollow shaft and metalic parts (inner and external) in stainless steel as standard version. • Distance of anti-rotation lock-pin standard 18mm. On request: • Special ratios and measures in Inch. • Distance of anti-rotation lock-pin 22mm. • Colours, glossy finish: orange RAL 2004, black RAL 9005, grey RAL 7004. • Combinable tools: flanged gearbox: RINV-OP62, reducer RD26 (see drop-down menu on the right). • Available accessories: shaft block flange, spacer flange, movement knob (see drop-down menu on the right).
