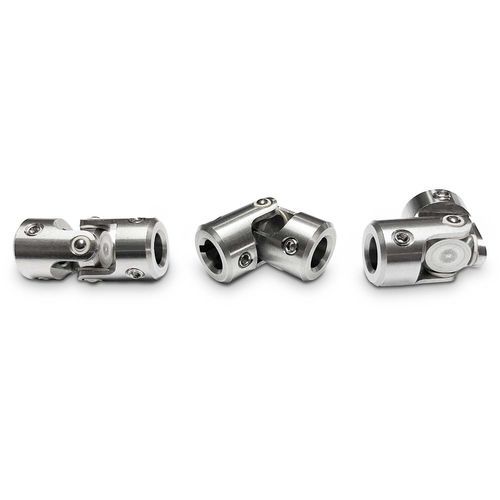

Double universal joint GC seriesstainless steel
Add to favorites
Compare this product
Characteristics
- Configuration
- double
- Material
- stainless steel
- Diameter
Max.: 14 mm
(0.55 in)Min.: 6 mm
(0.24 in)- Torque
Max.: 14 Nm
(10.32587 ft.lb)Min.: 1.5 Nm
(1.106343 ft.lb)- Operating angle
Max.: 45 °
Min.: 0 °
- Speed
Max.: 1,000 rpm
(6,283.2 rad.min-1)Min.: 100 rpm
(628.3 rad.min-1)
Description
The GC universal joints are used for the transmission of torque between of
non-aligned elements.
• Maximum working angle 45°.
• Suitable for intermittent (UI) and continuous operation (UC).
• Entirely machined from solid AISI303 stainless steel.
• Sliding bushes in self-lubricating plastic material.
• Maintenance free.
• Available bores: ø6 - ø8 (combinable with each other);
ø10 - ø14 (combinable with each other).
• Flexibility of application with rigid and telescopic shafts, angular gearboxes,
gear-reducers and screw jacks.
• Main features: universal application, high reliability, extreme precision and
ease-of-use.
