Position indicator EP4 series

fieldbusLCD displayintegrated

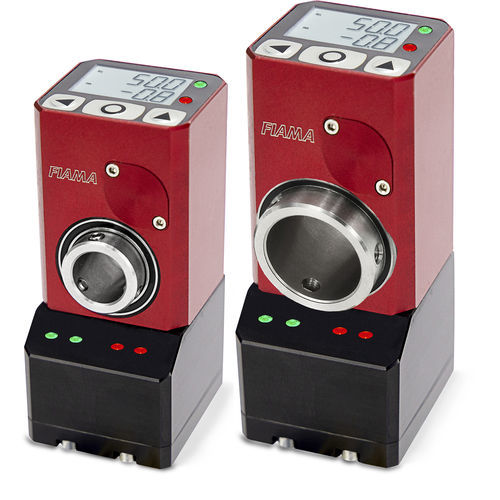

EP43NET-EP46NET programmable indicators with hollow shaft and integrated fieldbus Profinet, EthernetIP, EtherCat, Powerlink and IOLink. Ideal for quick, efficient and safe format changeover on machines and plants, even in various complex working conditions. Main features: ● Compact and robust case made of anodized aluminum, stainless steel hollow shaft supported by ball-bearings. ● The display has digits which are 7,5mm high with excellent readability also from a distance. ● 2 models: - EP43NET with hollow shaft ø14 - ø12,7 (1/2 ”); - EP46NET with hollow shaft ø20 - ø19,05 (3/4”) - ø25 - ø25,4 (1”). ● 3 installation possibilities: - A for horizontal shafts with optimal visibility when positioned at a height between 50cm and 120cm; - B1 for vertical shafts with optimal visibility between 50cm and 150cm; - B2 for vertical shafts with optimal visibility above 170cm. Main functions: ￭ Backlit LCD display with two rows; the first row shows the current position and the second row shows the target position. ￭ To guide user during positioning / green signaling LED ￭ Information centralization ￭ Quick and customizable configuration
