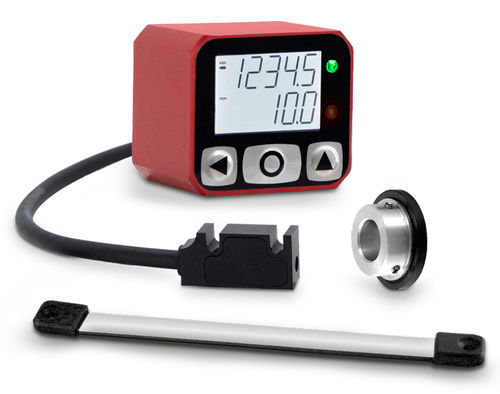

Position indicator F4RS

LCD displaycompacteasy to install

Programmable position indicator to be combined with the magnetic ring AM or magnetic band P50 and serial connection, which is used for angular or linear measurements. It is easy to install for a fast, efficient and safe format changeover. Main features: • Compact and robust case made of anodized aluminum. • The display has 7,5mm-high-digits, which allow excellent readability also from a distance. Main functions: ￭ Display with backlight and two rows: the first row shows the current position and the second row shows the target position. The target value is sent to the unit via a serial interface from the PLC, allowing manual format changeover by the operator using a handwheel. ￭ 2 LEDs, 1 green and 1 red, guide the operator until the correct position has been reached ￭ All parameters are freely programmable via the integrated RS485 interface for networking with the PLC or a remote supervision system.
