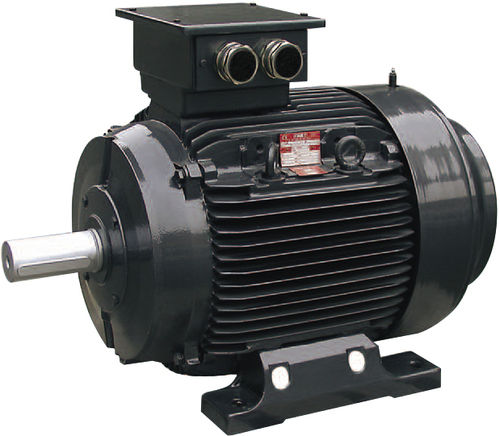

AC motor 94/9/EC
three-phaseasynchronous400 V

AC motor
AC motor
Add to favorites
Compare this product

Characteristics

AC/DC
AC, three-phase
Type
asynchronous
Voltage
400 V
Protection class
explosion-proof

Description

The basic three phase FIMET motors have been modified in a suitable way in order to be installed in environments affected by potentially exploding atmospheres for dust and/or gas presence , in compliance with what has been defined by the 94/9/EC directive. In particular the following versions are available: Dust II 2D, zone 21 The asynchronous three phase motors of M2AX , MAX e MX series, in sizes from 63 up to 400 , have been homologated by the notified body INERIS n° 0080 and are marked: IP 65 , T 125 °C or T 135 °C or T 145 °C II 3D, zone 22 The asynchronous three phase motors of 3MAR series, in sizes from 63 up to 132 , and of M2AR, MAR and MR, in sizes 63 ÷ 400, have been homologated and internally certified and are marked: IP 55 , T 125 °C Gas II 3G, zone 2 The asynchronous three phase motors of M2AG , MAG e MG series, in sizes from 63 up to 315 , have been homologated by the notified body INERIS n° 0080 and are marked: II 3G EEx nA II T3 , or II 3G EEx nAC II T3 , or II 3GD EEx nA or nAC II T3 T 200 °C IP 55
