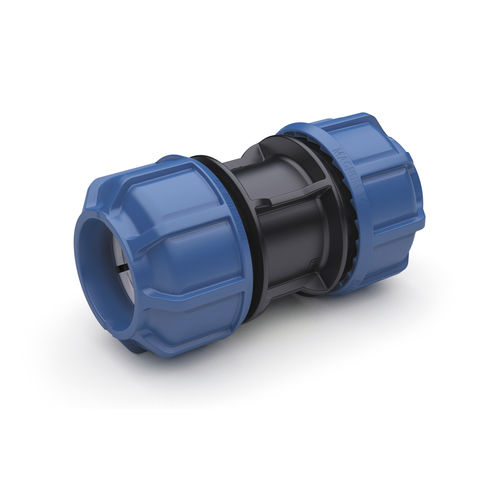

Compression fitting MAGNUM

hydraulicPPPOM

MAGNUM 3G d 16-63: Series of fittings with internal components mechanically retained together (into the body) in order to avoid any possible loss when installed, zero interference system to allow the free insertion to polyethylene pipes from d 16 up to d 63 mm. MAGNUM 3G compression fittings make use of the Slide & Tighten low interference hydro-mechanical sealing system. This special system guarantees the insertion of pipes inside the fittings with very low manual effort and a complete operational safety. Once the pipe is inserted, the progressive tightening of the nut forces the pressure compressing the gasket, ensuring the water tight sealing and adjusting possible problems due to ovalized or under dimensioned pipes. The gasket functionality and the hydraulic sealing are preserve thanks to an appropriate compression. MAIN FEATURES: Body: PP Copolymer, Drinking water compliant, Long Lifetime Mechanical Resistance 2 Seal Ring: EPDM 70 Shore A, Drinking water approved 3 Clinching ring: Acetal (POM), Long Lifetime Mechanical Resistance 4 Nut: Acetal (POM), Long Lifetime Mechanical Resistance
