Piston pump BK series
for adhesivesmobileindustrial

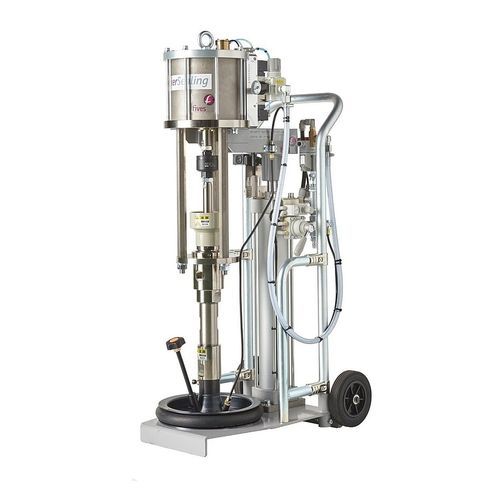

Piston pump - BK series - Fives Cinetic SAS - for adhesives / mobile / industrial
Piston pump - BK series - Fives Cinetic SAS - for adhesives / mobile / industrial
Add to favorites
Compare this product

Characteristics

Technology
piston
Fluid
for adhesives
Mobility
mobile
Domain
industrial, for automotive applications
Applications
vehicle
Fluid specification
for low-viscosity fluids, for high-viscosity products
Other characteristics
with seal
Flow

2.4 l/min
(0.63401 us gal/min)

Pressure

30 MPa

Length

570 mm, 620 mm
(22 in, 24 in)

Width

363 mm, 429 mm
(14.29 in, 16.89 in)

Height

1,078 mm
(42.44 in)

Weight

79 kg, 90 kg
(174.17 lb, 198.42 lb)

Description

The DeckerSealingTM BK Series is a cost-effective and low maintenance pumping solution. Ideal for automotive applications, these pumps are widely used for windscreen glazing and structural bonding in the body of the car. They are also well suited to gluing applications in the electric vehicle sector, as well as specialist glass applications. There are two versions of the BK available. Choose the single-piston BKS60075 for lower viscosity products or the double-piston BKT60075 for applications that require higher pressure for high viscosity materials. A range of additional options and features ensure that your DeckerSealingTM BK Series is the perfect solution for you: • Optional heating system • Single or double elevator • Optional 20 gallon follow plate
