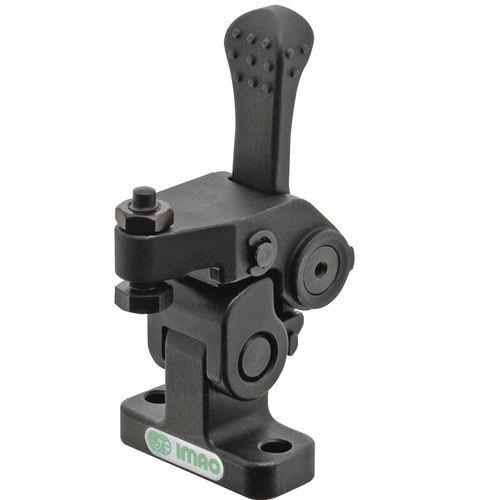

retractable clamp / cam-operated / steel / miniature
QLRE100

{{requestButtons}}

Characteristics

  • Type:

    cam-operated

  • Other characteristics:

    steel, miniature, retractable

  • Applications:

    workpiece

  • Clamping force:

    Max.: 1,098 N

    Min.: 667 N

Description

Clamps straight down onto the workpiece. The cam handle is then pushed down for final workholding pressure.These miniature rocker clamps pivot completely away from the work piece for easy loading and unloading. The clamp moves forward and downward into position and clamps straight down onto the work piece for direct downward pressure. The cam handle is then pushed down for final workholding pressure. These clamps are ideal for repetitive accurate clamping operations. They come with a contact bolt that can be reversed for finished or rough work piece surfaces. Mounts from the top with two mounting holes. The body and spindle are made from SAE-1045 alloy steel. The arm and joint are made from SAE-4135 alloy steel. The handle is made from SAE-4140 alloy steel. Parts are heat treated with black oxide finish.
