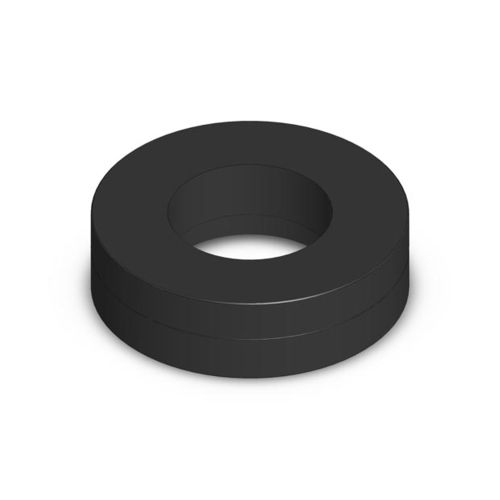

Spherical washer BJ742 seriessteel
Add to favorites
Compare this product
Characteristics
- Configuration
- spherical
- Material
- steel
- Internal diameter
Max.: 25 mm
(0.98 in)Min.: 6.4 mm
(0.25 in)- External diameter
Max.: 44 mm
(1.732 in)Min.: 13 mm
(0.512 in)- Thickness
Max.: 8.2 mm
(0.323 in)Min.: 2.5 mm
(0.098 in)
Description
Also known as self-aligning washers, these two-piece washer sets work together to compensate for misaligned parts. These washers are commonly used in fixturing and clamping applications. The parts below include both a top and bottom washer. The steel style are made from heat-treated 1045 alloy steel with a black oxide finish.
