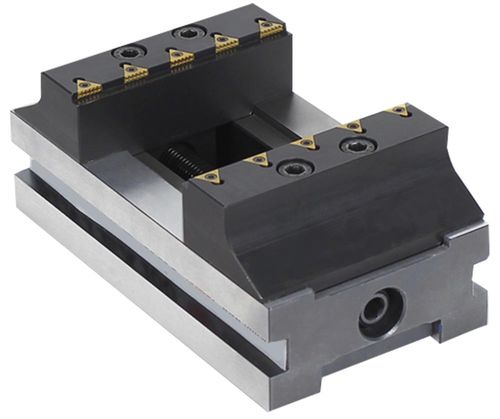

Machine vise F677-584901self-centeringmultiplefor 5-axis machining
Add to favorites
Compare this product
Characteristics
- Applications
- machine
- Other characteristics
- self-centering, multiple, for 5-axis machining
Description
TriMax self-centering vises feature high clamping forces and accuracy while using just 3.5 mm of workpiece surface utilizing patented TG GripSerts. The Basic TriMax S vise set allows a clamping range from 7-85 mm. The vise allows for first and secondary operations with one jaw set, eliminating the need for multiple set ups. Vise can be mounted on a T-slot or grid machine table as well as custom fixtures. Included with the vise are ten TG GripSert grippers for steel (TG-STD). Their low profile provides machining tool access required for 5-axis machining. Vise set also includes a wrench and a work stop with washer and screw. TriMax S vises allow for workpiece repeatability of just +/-.01 mm.
Catalogs
Fixtureworks catalog
572 Pages
TRIMAX VISES
40 Pages
Exhibitions
Meet this supplier at the following exhibition(s):
IMTS 2026
14-19 Sep 2026 Chicago (USA - Illinois) Hall West Level 3 - Stand 432317
