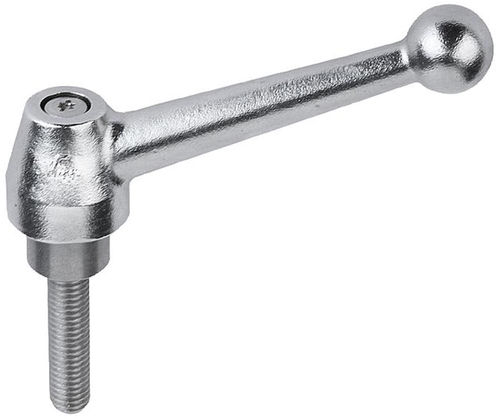

Steel tension lever 06440

stainless steelrustproofadjustable

Description
Adjustable tension lever 06441 with a spline-engaged head: pulling the handle disengages the spline to allow free rotation for repositioning; releasing the handle re-engages the spline for clamping. Handles are stainless steel and electro-polished. Studs are stainless steel for the stainless variants. Product dimensions and threads are provided in inch units.

Product Types

• 06441 – Adjustable Tension Levers: Stainless steel handle and stainless stud
• 06440 – Adjustable Tension Levers: Stainless steel handle and internal thread
• 06441 (steel) – Steel handle and stud
• 06440 (steel) – Steel handle and internal thread

Part Options
Thread in:

• 3/8-16
• 1/2-13

Thread Length (in):

• 0.79
• 1.18
• 1.57
• 1.77
• 1.97
• 2.36

Parts Table (selected rows)
Header: ID | SKU | Thread | L (in) | D (in) | D1 (in) | D2 (in) | H (in) | H1 (in) | H2 (in) | H3 (in) | A (in) | A1 (in) | No. of Teeth
115373 | 06441-11A4X20 | 3/8-16 | 0.79 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115375 | 06441-11A4X30 | 3/8-16 | 1.18 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115389 | 06441-11A4X40 | 3/8-16 | 1.57 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115397 | 06441-11A4X45 | 3/8-16 | 1.77 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115399 | 06441-11A4X50 | 3/8-16 | 1.97 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115407 | 06441-11A4X60 | 3/8-16 | 2.36 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115423 | 06441-11A5X20 | 1/2-13 | 0.79 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115437 | 06441-11A5X30 | 1/2-13 | 1.18 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115461 | 06441-11A5X40 | 1/2-13 | 1.57 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24
115467 | 06441-11A5X45 | 1/2-13 | 1.77 | 0.75 | 1.10 | 0.79 | 1.61 | 0.47 | 2.13 | 1.93 | 3.27 | 4.21 | 24

Characteristics / Technical specifications

• Body: steel or stainless steel (variant dependent)
• Handle: stainless steel (electro-polished) or steel
• Stud: stainless steel for stainless variants
• Finish: hammertone powder coat for steel body variants; electro-polished for stainless handles
• Operation: pull up handle to disengage spline (allows free rotation for positioning), release to re-engage for tightening
• Units: inch (product data presented in inch units)
• Available threads: 3/8-16, 1/2-13
• Available thread lengths (in): 0.79, 1.18, 1.57, 1.77, 1.97, 2.36
• Number of teeth (listed parts): 24
