Conveyor foot KA-R

equipmentfor electrical appliancesmachine

Product description

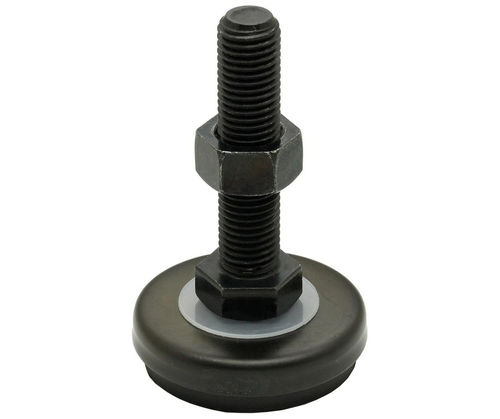

These KA-R series leveling feet are designed for industrial machines, electronics, conveyors, workbenches and office equipment. Each foot features a rubber pad to reduce slippage and provide light vibration damping with resistance to liquids. The stem, foot and hex nut are steel with a zinc plated finish; the pad is black chloroprene rubber and the washer is translucent polyamide.

Type

• Hex type, heavy duty, rubber pad
• Steel stem and foot with rubber pad

Available parts (table)
ID | SKU | Part Number | Thread | D (mm) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | W (mm) | Static Load Capacity (Lbs)
150872 | KA40-08X060R | KA40-08X060R | M8×1.25 | 40 | 78.5 | 60 | 13 | 5.5 | 2.5 | 13 | 670
150873 | KA40-10X050R | KA40-10X050R | M10×1.50 | 40 | 70.0 | 50 | 13 | 7.0 | 3.0 | 17 | 670
150874 | KA50-12X070R | KA50-12X070R | M12×1.75 | 50 | 93.0 | 70 | 15 | 8.0 | 3.5 | 19 | 1120
150887 | KA60-16X070R | KA60-16X070R | M16×2.00 | 60 | 97.0 | 70 | 17 | 10.0 | 4.0 | 24 | 1570
150894 | KA60-20X100R | KA60-20X100R | M20×2.50 | 60 | 130.0 | 100 | 17 | 13.0 | 5.0 | 30 | 1570
150896 | KA60-20X130R | KA60-20X130R | M20×2.50 | 60 | 160.0 | 130 | 17 | 13.0 | 5.0 | 30 | 1570

Media
Specifications PDF available for this product.

Technical specifications

• Application: industrial machines, electronics, conveyors, workbenches, office equipment
• Type: hex type, heavy duty leveling foot with rubber pad
• Materials: stem, foot and hex nut in steel with zinc plated finish
• Pad material: black chloroprene rubber (anti-slip, light vibration damping, liquid resistant)
• Washer material: translucent polyamide
• Available thread sizes: M8×1.25, M10×1.50, M12×1.75, M16×2.00, M20×2.50
• Available foot diameters (D): 40 mm, 50 mm, 60 mm
• Static load capacity examples: from 670 Lbs to 1570 Lbs depending on size
• Series / model designation: KA-R
