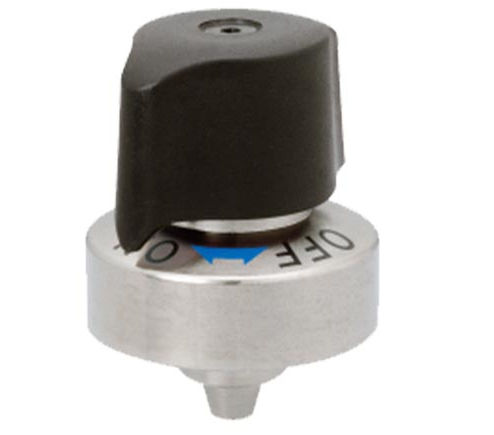

Technopolymer indexing plunger QCIC-F

threaded

Description
Quick fastening indexing plungers designed for precise position locating of sliding or rotating components. Quarter-turn plastic knob provides rapid locking and unlocking with ON/OFF markings and a perceptible "click". The 3-position (3P) version uses coil spring pressure and includes a MID detent between ON and OFF. A red indicator band is visible when the fastener is in the OFF position. Tapered surface contact ensures repeatability of ±0.05. Three socket head cap screws for rear mounting are included.

Product Types

• QCIC — Indexing Plungers
• Plastic knob, steel body; 2-position and 3-position versions available

Available parts (table)
ID | Part Number | SKU | Type | Thread | M | D | D1 | D2 | Dp | d | d1 | H | H1 | H2 | S | Clamping Force (Lbs) | Allowable Load (Lbs) | Spring Pressure (Lbs) | PN
142180 ; QCIC05F26-2P ; QCIC05F26-2P ; 2-Position ; M3×0.50 - Depth 5 ; 26 ; 10 ; 26 ; 20 ; 3.3 ; 5 ; 29 ; 11 ; 33 ; 4.2 ; 30 ; 200 ; - ;
142181 ; QCIC07F32-2P ; QCIC07F32-2P ; 2-Position ; M4×0.70 - Depth 6 ; 32 ; 12 ; 32 ; 24 ; 4.9 ; 7 ; 34 ; 13 ; 39 ; 5.0 ; 40 ; 300 ; - ;
142182 ; QCIC07F32-3P ; QCIC07F32-3P ; 3-Position ; M4×0.70 - Depth 6 ; 32 ; 12 ; 32 ; 24 ; 4.9 ; 7 ; 34 ; 13 ; 39 ; 5.0 ; 40 ; 300 ; 2.0 ;

Technical specifications

• Body: 4140 steel with electroless nickel-plated finish
• Tapered pin: 4135 steel with electroless nickel-plated finish
• Knob: black plastic
• Quarter-turn knob with ON/OFF markings and perceptible "click" on locking/unlocking
• 3-position (3P) version: coil spring pressure, includes a MID position between ON and OFF
• Red indicator band visible when fastener is in OFF position
• Tapered surface contact provides ±0.05 repeatability
• Includes three socket head cap screws to mount fastener from backside of body
