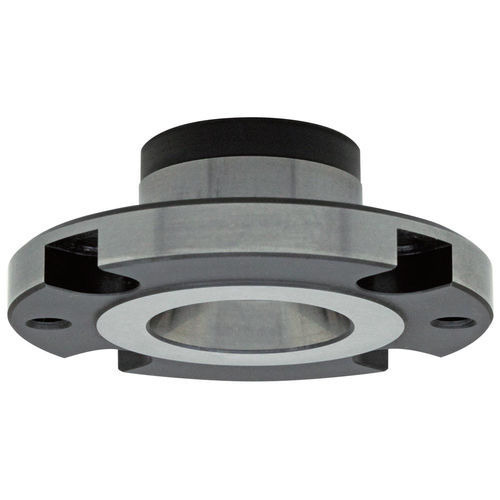

Industrial receiver AMWF-BU series

automationhigh precision

Product overview
Flex locator receivers of the AMWF-BU series are precision receptacles designed for use with AMWF-W series ball-locking pneumatic Flex locator pins. They provide accurate locating and reliable fastening for tooling, fixturing and assembly operations. When air pressure is applied to the locator pin, the balls retract into the pin allowing quick release from the receiver. Locating repeatability is ±10 microns. The receiver body is made from heat-treated 4140 steel with a black oxide finish.

Available part options (table)
ID | SKU | Part Number | Type | Thread | D | D1 g6 | D2 | Dp P.C.D. | D4 | D5 +0.15/+0.05 | H ±0.003 | H1 | H2 | H3 | V Degrees | For SHCS Size | Use Locator Pin | Use with Knob-Locking Locator | PN
136932 | AMWF40-BU-D | AMWF40-BU-D | Diamond | M5x0.80 | 60 | 28 | 27.5 | 50 | 38 | 16 | 8 | 15 | 10 | 2.5 | 45 | M5 | AMWF40-W-T/-S | CP741-1660L
136934 | AMWF40-BU-S | AMWF40-BU-S | Straight | M5x0.80 | 60 | 28 | 27.5 | 50 | 38 | 16 | 8 | 15 | 10 | 2.5 | 45 | M5 | AMWF40-W-T/-S | CP741-1660S
136930 | AMWF40-BU-T | AMWF40-BU-T | Tapered | M5x0.80 | 60 | 28 | 27.5 | 50 | 38 | 16 | 8 | 15 | 10 | 2.5 | 45 | M5 | AMWF40-W-T/-S | CP741-1660L
136933 | AMWF50-BU-D | AMWF50-BU-D | Diamond | M6x1.00 | 75 | 36 | 35.5 | 62 | 48 | 20 | 10 | 19 | 14 | 3.5 | 45 | M6 | AMWF50-W-T/-S | -
136935 | AMWF50-BU-S | AMWF50-BU-S | Straight | M6x1.00 | 75 | 36 | 35.5 | 62 | 48 | 20 | 10 | 19 | 14 | 3.5 | 45 | M6 | AMWF50-W-T/-S | -
136931 | AMWF50-BU-T | AMWF50-BU-T | Tapered | M6x1.00 | 75 | 36 | 35.5 | 62 | 48 | 20 | 10 | 19 | 14 | 3.5 | 45 | M6 | AMWF50-W-T/-S | -

Media (document titles)

• Specifications
• Instructions
• View Product Catalog
• How to Use
• How to Install

Technical specifications

• Locating repeatability: ±10 microns
• Body material: heat-treated 4140 steel, black oxide finish
• Compatibility: AMWF-W series ball-locking pneumatic Flex locator pins; CP741 Flex clamping locators
• Available part types: Diamond, Straight, Tapered
• Thread sizes: M5 x 0.80 (AMWF40 variants), M6 x 1.00 (AMWF50 variants)
• Overall diameters: 60 mm (AMWF40) and 75 mm (AMWF50)
• Typical applications: locating and fastening in tooling, fixturing and assembly; balls retract under air pressure to permit release
• Dimensional variants: specific parameters (D, D1 g6, D2, P.C.D., D4, D5, H, H1, H2, H3, V degrees) as listed above
